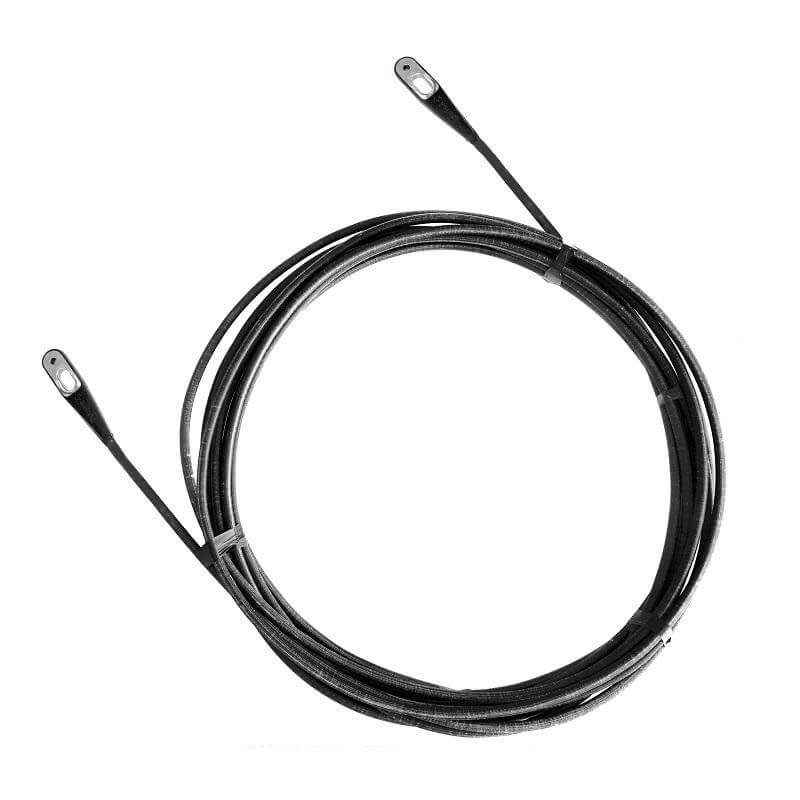

Armare SK99 Top-Down Torsional cable - L : 15.5m, SWL : 2.5t

https://www.upffront.com/web/image/product.template/4347/image_1920?unique=e799469

1,910.16 1910.16 USD 2,010.69

1,710.79 €

5% Off

Available on request

Days
:
Hours
:
Mins
:
Secs
  • Core material
  • Brand
  • SWL (kg)
  • NBL (kg)
  • Cable length (mm)
  • Cable Ø (mm)
  • Fitting pin Ø (mm)
  • Fitting width (mm)
  • Dash equivalent
  • EA (MN)
  • Fitting reference
  • Cable weight (g)

This combination does not exist.

Product Image

Armare SK99 Top-Down Torsional cable - L : 15.5m, SWL : 2.5t

2,010.69 1,910.16
5% Off
SKU:
N/A
Brand: Armare
Shipping Info

30-day money-back

 14-day returns

 Express shipping available

Share :

The Armare range of standard PBO, SK99 and K49 torsional cables have been specifically designed for either bottom-up or Top-down applications. Top-down cables have larger diameters relative to the same length bottom-up cable to handle the additional torsional loads. The SK99 core is increasingly becoming the go-to core fibre for both top-down and bottom-up furling. SK99 gets very close to PBO in terms of performance e.g. weight and diameter, but Dyneema® offers increased durability and complete reliability. Armare’s multi-layered, braided covers provide excellent torsional performance plus abrasion resistance and every cable comes with a pinned termination at the upper / lower ends to interface with the swivel / Drum.

Specifications

Ropes
Core material DSK99
Boat
Load
SWL (kg) 2500
NBL (kg) 10000
Dimensions
Cable length (mm) 15500
Cable Ø (mm) 15.3
Fitting pin Ø (mm) Max PIN 15
Fitting width (mm) 15.5
Rigging
Dash equivalent 9
EA (MN) 5.55
Compatibility
Fitting reference AT2
Weight
Cable weight (g) 3990
