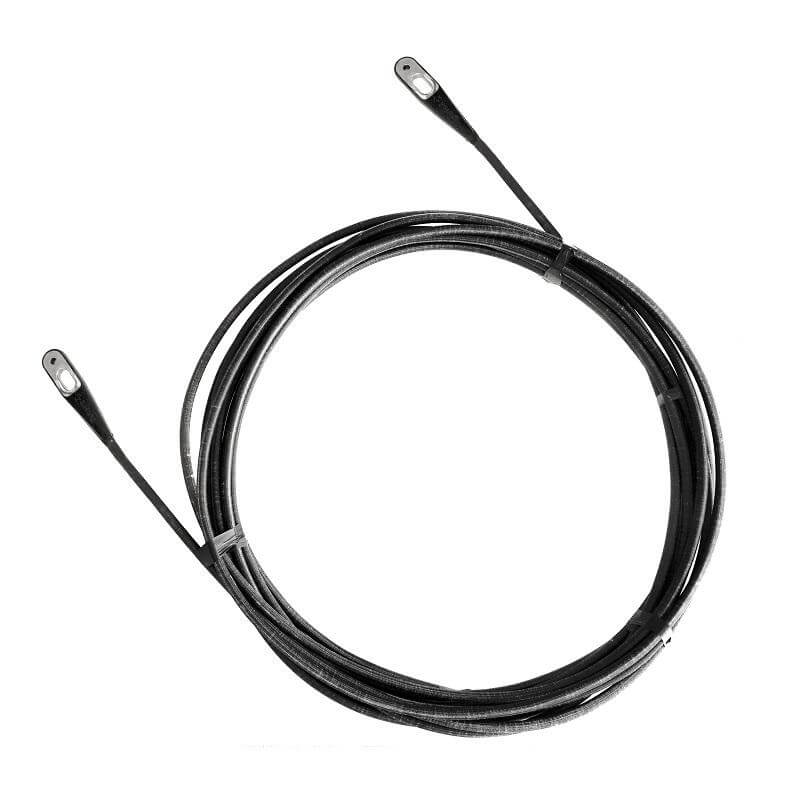

Armare PBO Bottom-Up Torsional cable - L : 22.0m, SWL : 3:2t

https://www.upffront.com/web/image/product.template/4456/image_1920?unique=3fe6e8a

3,271.88 3271.88 USD 3,444.09

2,930.39 €

5% Off

Available on request

Days
:
Hours
:
Mins
:
Secs
  • Core material
  • Brand
  • SWL (kg)
  • NBL (kg)
  • Cable length (mm)
  • Cable Ø (mm)
  • Fitting pin Ø (mm)
  • Fitting width (mm)
  • Dash equivalent
  • EA (MN)
  • Fitting reference
  • Cable weight (g)

This combination does not exist.

Product Image

Armare PBO Bottom-Up Torsional cable - L : 22.0m, SWL : 3:2t

3,444.09 3,271.88
5% Off
SKU:
N/A
Brand: Armare
Shipping Info

30-day money-back

 14-day returns

 Express shipping available

Share :

The Armare range of standard PBO, SK99 and K49 torsional cables have been specifically designed for either bottom-up or Top-down applications. Top-down cables have larger diameters relative to the same length bottom-up cable to handle the additional torsional loads. The PBO core is the performance choice for code zeros and structural furling forestays, offering the lightest weight and smallest diameter. Armare’s multi-layered, braided covers provide excellent torsional performance plus abrasion resistance and every cable comes with a pinned termination at the upper / lower ends to interface with the swivel / Drum.

Specifications

Ropes
Core material PBO
Boat
Load
SWL (kg) 3200
NBL (kg) 12900
Dimensions
Cable length (mm) 22000
Cable Ø (mm) 13.6
Fitting pin Ø (mm) Max PIN 15
Fitting width (mm) 15.5
Rigging
Dash equivalent 17
EA (MN) 10.94
Compatibility
Fitting reference AT2
Weight
Cable weight (g) 5200
