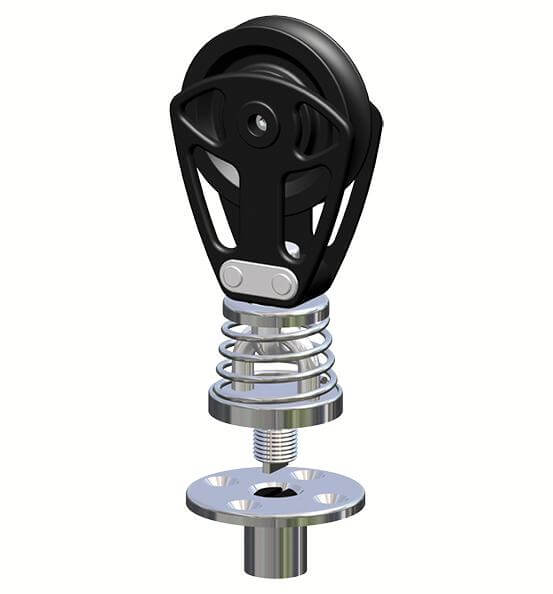

Antal XXL Single Block Ø150 on Screwed Padeye

1,357.24 1,357.24
0% Off
SKU:
N/A
Brand: Antal
Shipping Info

30-day money-back

 14-day returns

 Express shipping available

Share :

Antal's XXL range, also called the composite fibre series, is based on the use of composite fibre bearings and double self-captive Delrin ball thrust bearings. The cheeks are comprised of 3571 TA16 aluminium alloy, designed to reduce and optimise weight, whilst not compromising on strength. This range use thickly anodized aluminium sheaves. The main bearing is made of high-strength composite fibre impregnated with self-lubricating substances. A double lateral Delrin ball bearing makes the sheaves slide perfectly smoothly. Sheaves are supplied with the stainless steel central hub, they are available separately.

Specifications

Ropes
Recommended line - Max Ø (mm) 20
Boat
Load
SWL (kg) 6500
Blocks
Bearing type Ball bearing
Sheave material Aluminium
Sideplate material Aluminium
Ratchet No
Dimensions
Sheave Ø (mm) 150
Furling
Compatibility
Weight
Weight (g) 4100
