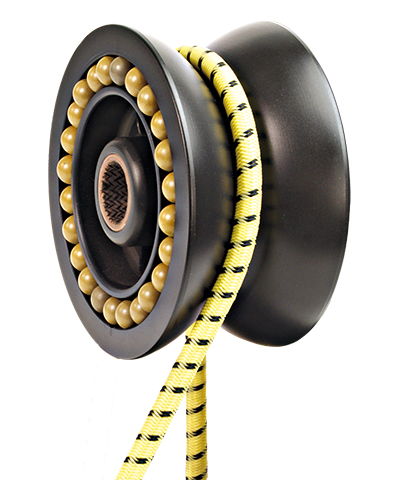

Antal Tulip Sheave 45 mm, Mekton
A genuine Antal replacement tulip sheave for wide lead angles with minimal footprint. The 45 mm Mekton (fibre-reinforced resin) wheel uses self-captive side ball bearings for low friction and a composite axial/radial bearing to manage side loads—ideal for compact organisers and cross-deck leads.
Why it’s a smart upgrade
-
Handles acute lead angles while keeping decks tidy and low-profile
-
Low friction thanks to self-captive side ball bearings
-
Light, tough Mekton resin for reliable service with minimal maintenance
Key specifications
-
Sheave Ø: 45 mm
-
Max rope Ø: 12 mm
-
Safe Working Load (SWL): 1,000 kg
-
Thickness (T): 31 mm
-
Hub Ø (D2): 12 mm
-
Side bearing: Delrin® balls (self-captive)
-
Axial/radial bearing: Composite fibre
-
Sheave material: Mekton (resin)
-
Weight: ~40 g
Typical applications
-
Tulip organisers (2–6 sheave banks), cross-deck and pit leads
-
Compact turning points where a revolving block won’t fit
Fit & compatibility notes
-
Confirm your installation’s sheave Ø (45 mm), hub Ø (12 mm) and thickness (31 mm) before ordering
-
Designed for rope up to 12 mm; not suitable for wire or rod
