Specifications for Antal Swivelling Cam Cleat - 10mm
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 10 |
| Recommended line - Min Ø (mm) | 6 |
| Boat | |
| Load | |
| SWL (kg) | 150 |

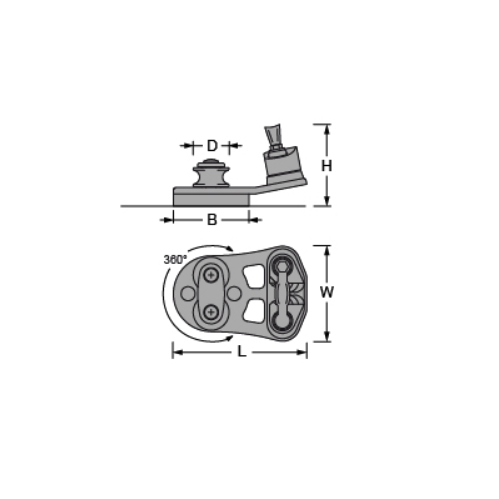

| Dimensions | |
| D (mm) | 28 |
| Base Ø (mm) | 59 |
| Fixing hole Ø (mm) | 5 |
| Length (mm) | 104 |
| Width (mm) | 74 |
| Weight | |
| Weight (g) | 230 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

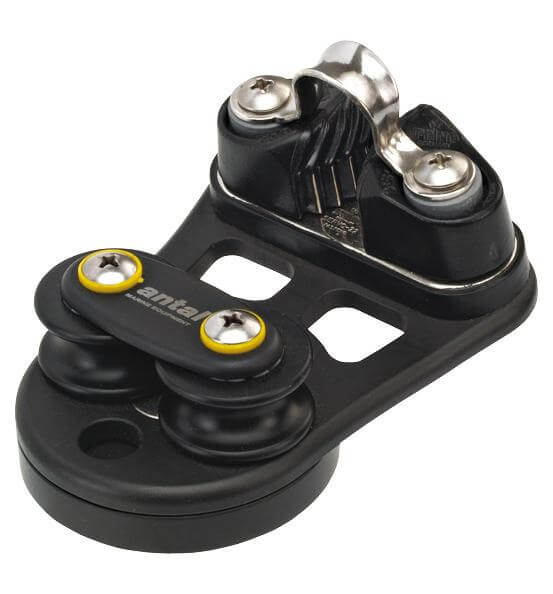

The Antal Swivelling Cam Cleat is a versatile option for managing control lines on your sailboat. The swivelling base allows for more ergonomic line handling and the stainless steel ribs on the plastic cams offers smooth yet secure line control. The aluminium base swivels through 360° on a single race of Torlon ball bearings. The system is fitted with 2 x Ø28 mm sheaves for lines up to Ø10 mm. Attachmenmt is with x3 5mm screws.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 10 |
| Recommended line - Min Ø (mm) | 6 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 150 |
| Dimensions | |
|---|---|
| D (mm) | 28 |
| Base Ø (mm) | 59 |
| Fixing hole Ø (mm) | 5 |
| Length (mm) | 104 |
| Width (mm) | 74 |
| Weight | |
|---|---|
| Weight (g) | 230 |
