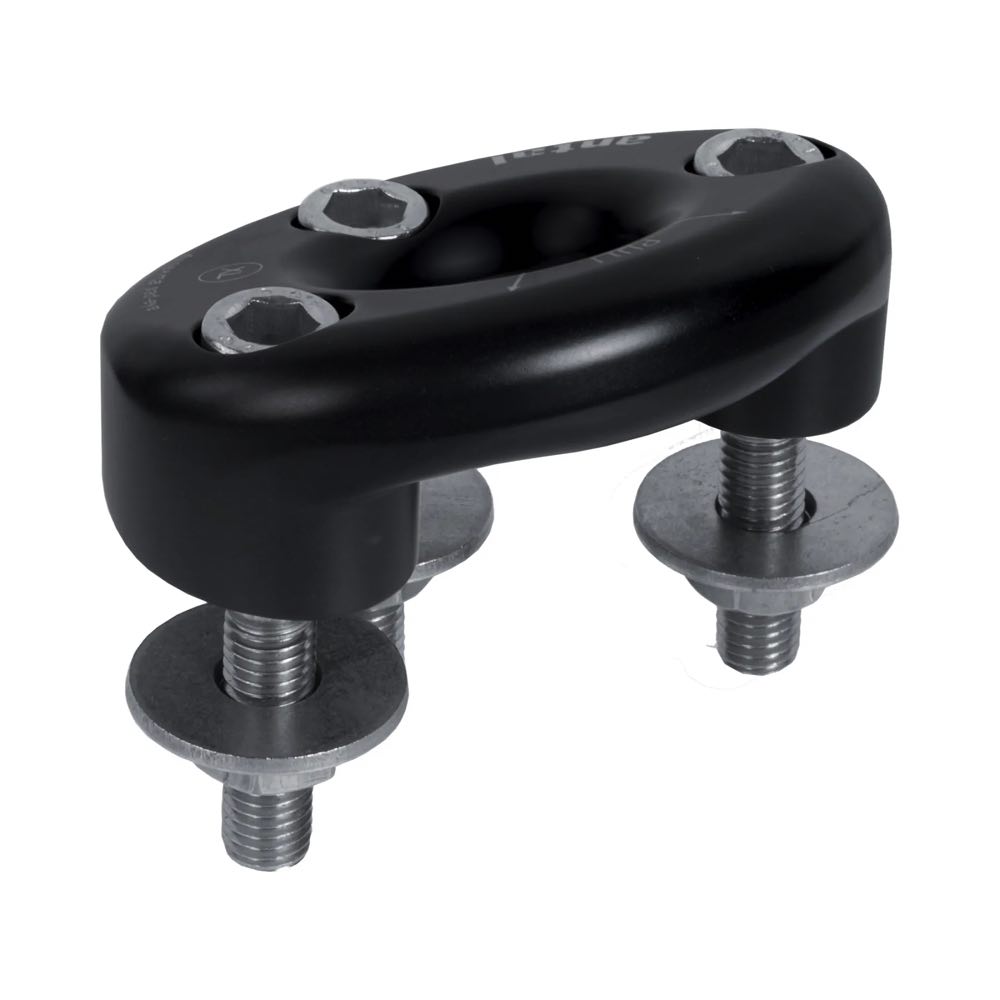

Antal Soft Attach Pad Eye for 14mm Line
The Antal Soft Attach Pad Eye for 14mm Line is the largest in the range, designed for extreme load applications with a Safe Working Load (SWL) of 6,800 kg. It provides a secure and lightweight attachment point for textile lashings, strops, and loops on high-performance or large cruising yachts.
Constructed from hard anodised aluminium, the pad eye is highly durable and corrosion-resistant. Smooth, rounded edges protect rope fibres, while the recessed central groove ensures lashings remain correctly seated under maximum load.
Available in two fixing types:
-
Screw/Bolt Fixing – using countersunk fasteners visible from the top.
-
Stud Fixing – with threaded studs integrated into the base and secured from below, creating a flush, snag-free top profile.
Features:
-
Designed for 14mm lines
-
Safe Working Load (SWL): 6,800 kg
-
Lightweight, hard anodised aluminium construction
-
Smooth edges and wide groove prevent rope chafe
-
Two installation variants: screw/bolt or integrated studs
-
Corrosion-resistant and maintenance-free
Applications:
-
Extreme-load attachment points for blocks and control systems
-
Suitable for deck, mast, and boom installations on large yachts
-
A strong, low-profile alternative to stainless pad eyes for textile rigging
