Antal Soft Attach Pad Eye for 12mm Line
The Antal Soft Attach Pad Eye for 12mm Line is engineered for high-load textile connections, with a Safe Working Load (SWL) of 5,000 kg. Designed for use with 12mm loops, strops, or lashings, it provides a strong and lightweight alternative to traditional stainless pad eyes.
Built from high-strength aluminium with a hard anodised finish, the pad eye offers corrosion resistance and durability. All edges are rounded for rope protection, and the central groove keeps lashings aligned and stable under load.
Two installation variants are available:
-

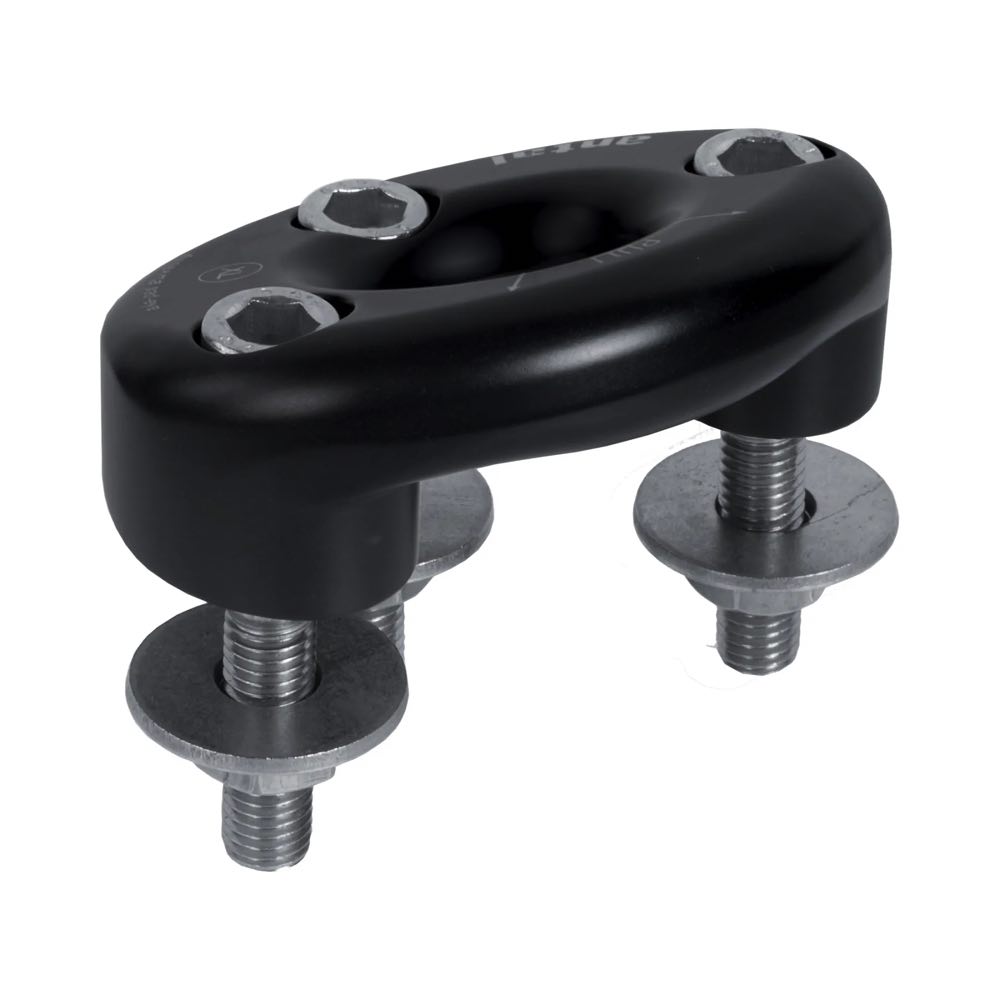

Screw/Bolt Fixing – with countersunk fasteners visible from above.
-
Stud Fixing – integrated studs secured from below, leaving a flush, snag-free top surface.
Features:
-
Designed for 12mm lines
-
Safe Working Load (SWL): 5,000 kg
-
Hard anodised aluminium, lightweight and corrosion-resistant
-
Rounded edges reduce rope wear
-
Wide groove ensures correct rope positioning
-
Available with screw/bolt or stud fixings
Applications:
-
Heavy-duty block and line attachment points
-
Suitable for deck, mast, or boom installations
-
Ideal for large cruising and racing yachts requiring soft fittings
