Antal Roller Bearing Sheave OPF 70 mm

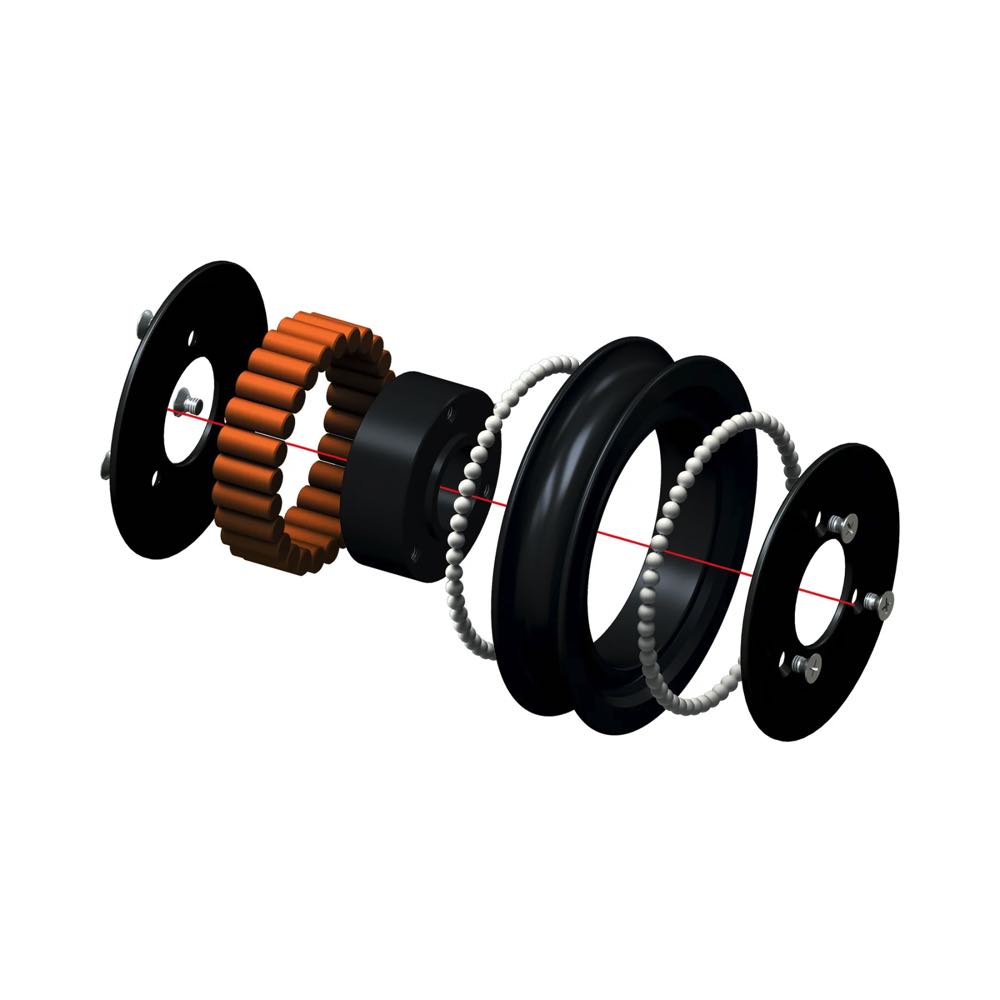

A genuine Antal replacement sheave for the OPF (One-Piece Frame) block range. The 70 mm hard-anodised aluminium wheel runs on a high-efficiency roller bearing with self-captive side balls, delivering ultra-low friction under load with minimal maintenance. A ground stainless-steel hub ensures precise alignment and long service life when refreshing well-used OPF blocks.
Why it’s a smart upgrade
-
Roller bearing core for excellent efficiency at working loads
-
Hard-anodised aluminium sheave with stainless hub for durability
-
Direct, drop-in fit for OPF bodies to restore like-new performance
Key specifications
-
Sheave Ø: 70 mm
-
Max rope Ø: 12 mm
-
Safe Working Load (SWL): 1,200 kg
-
Thickness (T): 16 mm
-
Sheave material: Aluminium
-
Bearing type: Roller (+ side balls)
Typical applications
-
Refurbishing Antal OPF 70 mm single/double and pad-eye variants
-
High-load turning points for mainsheets, genoa sheets and cascade tackles (within stated SWL)
Fit & compatibility notes
-
Confirm your block’s sheave Ø (70 mm) and thickness (16 mm) before ordering
-
Designed for rope up to 12 mm; not suitable for wire or rod
