Antal Roller Bearing Sheave OPF 100 mm

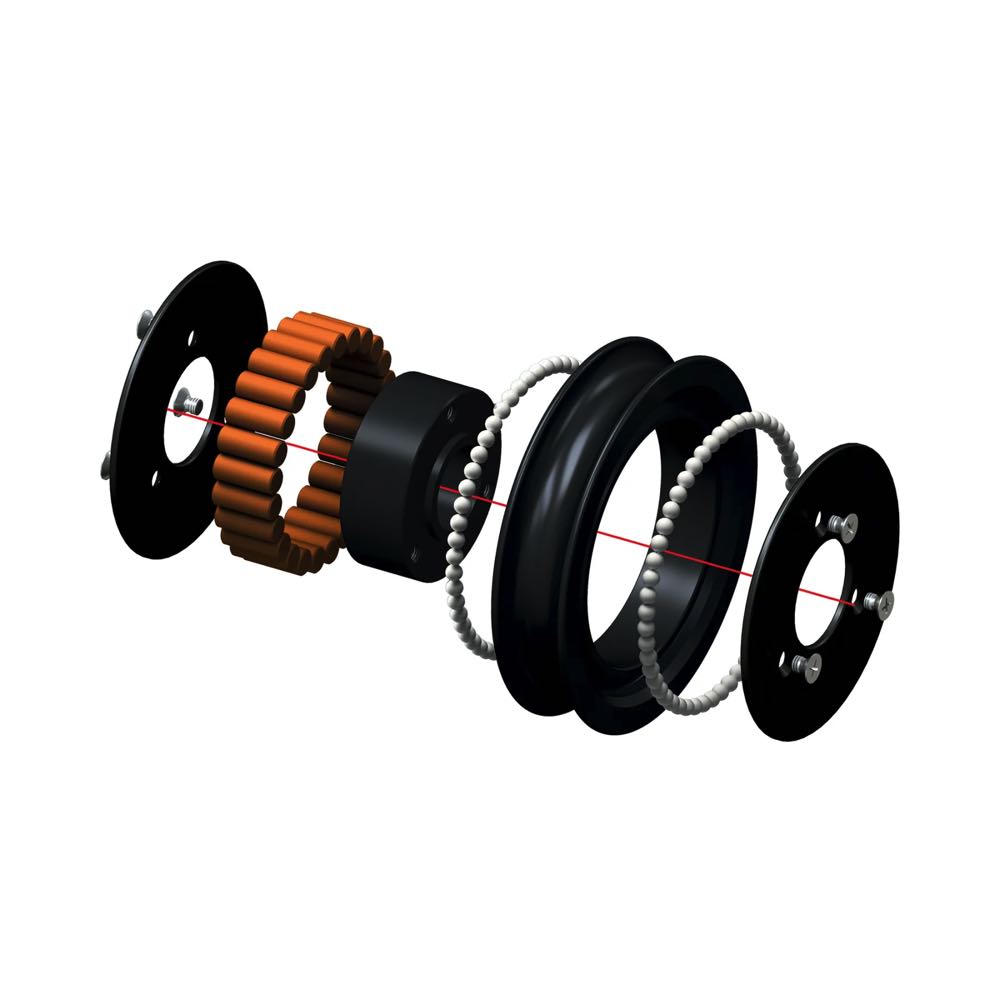

A genuine Antal replacement sheave for the OPF (One-Piece Frame) block range. The 100 mm hard-anodised aluminium wheel runs on a high-efficiency roller bearing (with self-captive side balls), delivering ultra-low friction under heavy loads with minimal maintenance. A ground stainless-steel hub ensures precise alignment and long service life when refreshing well-used OPF blocks.
Why it’s a smart upgrade
-
Roller bearing core for excellent efficiency at higher working loads
-
Hard-anodised aluminium sheave with stainless hub for durability
-
Direct, drop-in fit for OPF bodies to restore like-new performance
Key specifications
-
Sheave Ø: 100 mm
-
Max rope Ø: 16 mm
-
Safe Working Load (SWL): 3,200 kg
-
Thickness (T): 21 mm
-
Sheave material: Aluminium
-
Bearing type: Roller (+ side balls)
Typical applications
-
Refurbishing Antal OPF 100 mm single/double and pad-eye variants
-
High-load turning points for mainsheets, genoa sheets and cascade tackles (within stated SWL)
Fit & compatibility notes
-
Confirm your block’s sheave Ø (100 mm) and thickness (21 mm) before ordering
-
Designed for rope up to 16 mm; not suitable for wire or rod
