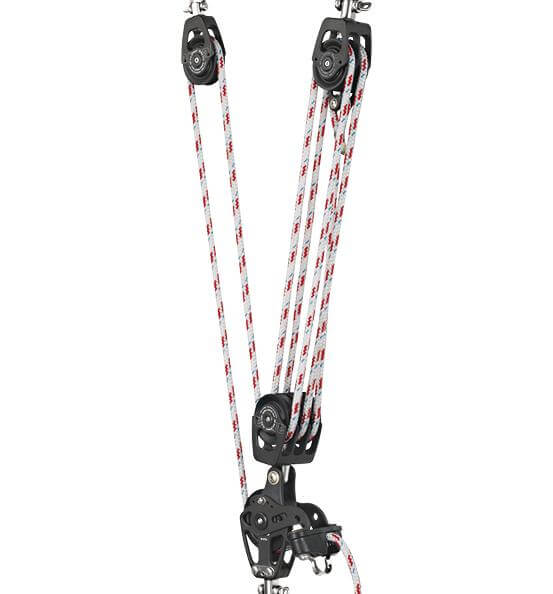

Antal E7/60 Mainsheet Tackle 7:1 – Complete

The Antal E7/60 Mainsheet Tackle 7:1 – Complete is a compact, high-efficiency mainsail control system designed for sailing yachts up to approximately 36 feet. Offering a 7:1 mechanical advantage, this system provides increased trimming power and finer control compared to a standard 6:1 setup, making it ideal for higher loads or more precise sail adjustment.

Built around Antal’s Size 60 block platform, the system combines a 60 mm primary sheave with 50 mm secondary sheaves, delivering smooth operation, efficient load distribution, and low-friction performance.

System Configuration

This complete mainsheet system consists of three matched components:

• Lower Block:
  Antal mainsheet block with 60 mm primary sheave, 50 mm triple sheave assembly above, and integrated cam cleat. This forms the base of the system and provides secure, responsive mainsheet control.
• Boom Blocks:
  • 1 × Single block (50 mm sheave)
  • 1 × Double block with becket (50 mm sheaves)

The becket on the boom-mounted double block acts as the starting point for the mainsheet, enabling the additional purchase required to achieve the full 7:1 configuration.

Key Features

• 7:1 Mechanical Advantage
  Provides increased power and finer adjustment, ideal for managing higher mainsheet loads.
• Size 60 Block System
  • Primary sheave: 60 mm
  • Secondary sheaves: 50 mm
    Optimised for smooth handling and efficient performance.
• Boom Becket Configuration
  The becket on the upper double block enables the 7:1 purchase without increasing system complexity.
• Integrated Cam Cleat
  Allows quick, secure cleating and controlled release directly from the lower block.
• Compact, Efficient Layout
  Maintains a clean three-block system while delivering higher mechanical advantage.
• Low-Friction Operation
  Ball-bearing sheaves ensure smooth, reliable performance under load.
• Durable Marine Construction
  Manufactured from anodised aluminium and stainless steel for strength and corrosion resistance.

Specifications

• Mechanical Advantage: 7:1
• Sheave Sizes: 60 mm (primary), 50 mm (secondary)
• Configuration: Lower block with cam cleat + boom-mounted single block and double block with becket
• Maximum Rope Diameter: Ø10 mm
• Safe Working Load (SWL): 800 kg
• Recommended Boat Size: Up to 36 ft (11 m)

The Antal E7/60 builds on the simplicity of the E6 system, adding extra purchase for improved control while retaining a compact, efficient layout—ideal for sailors who want more power without unnecessary complexity.
