Antal Aluminium Sheave OPF 120 mm

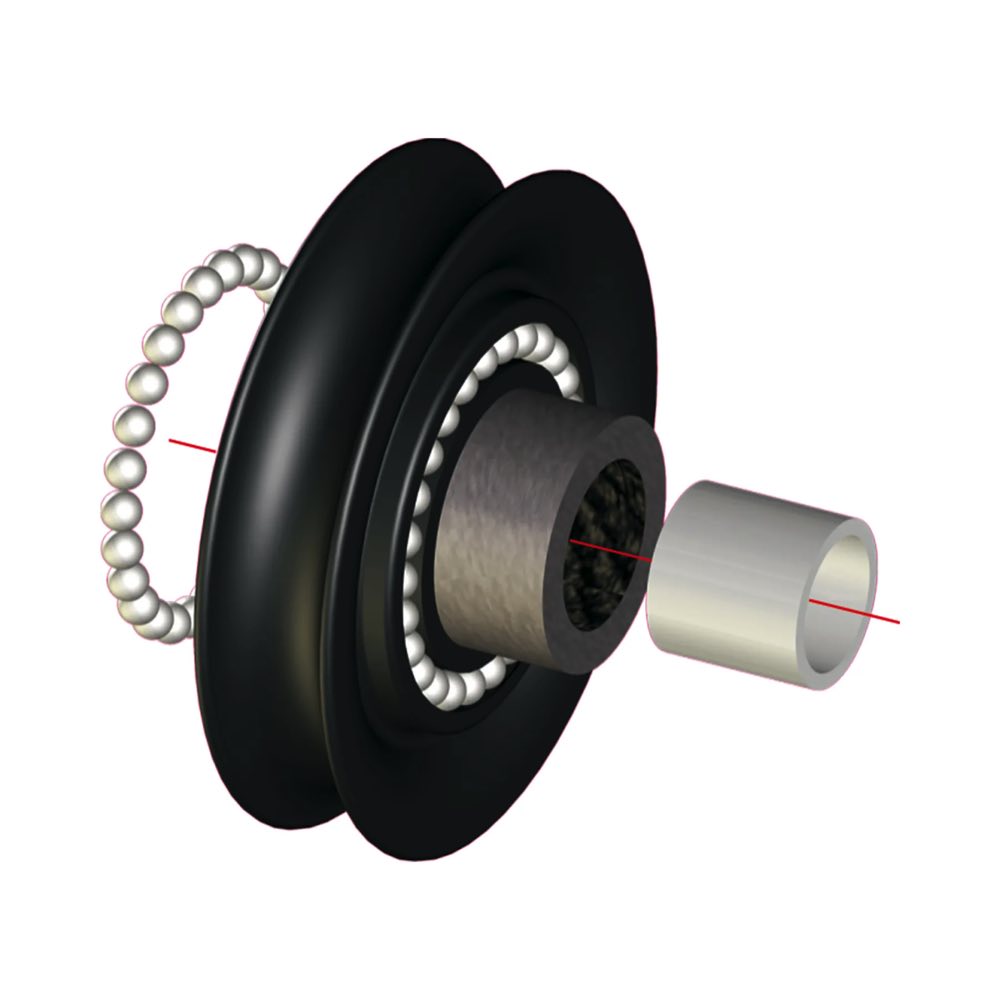

A genuine Antal replacement sheave for OPF (One-Piece Frame) blocks. The 120 mm aluminium sheave runs on a low-friction composite fibre radial bearing with self-captive Delrin® side balls, delivering smooth rotation under heavy loads with no lubrication required. Supplied with a ground stainless-steel hub for precise alignment and long service life, it’s ideal for refreshing OPF blocks or creating custom high-load turning points on cruising and performance yachts.
Why it’s a smart upgrade
-
High load, low friction: composite fibre radial bearing plus Delrin® side balls maintain efficiency under heavy sheet/halyard loads.
-
Durable and light: hard-anodised aluminium sheave and stainless hub stand up to salt, UV and grit.
-
Drop-in fit: built around Antal’s OPF architecture for quick swaps and consistent performance.
Key specifications
-
Sheave Ø: 120 mm
-
Max rope Ø: 18 mm
-
Safe Working Load (SWL): 5,000 kg
-
Thickness (T): 25 mm
-
Axle/bore Ø (D3): 24 mm
-
Hub Ø (D2): 30 mm
-
Bearings: Composite fibre (radial) + Delrin® balls (side)
-
Sheave material: Aluminium
-
Supplied with: Stainless-steel hub
-
Weight: ~420 g
Typical applications
-
Refurbishing Antal OPF 120 mm single, pad-eye, stand-up and deck-mounted blocks.
-
Custom high-load turning points for mainsheets, genoa sheets, cascade tackles and mast-base organisers (within stated SWL).
Fit & compatibility notes
-
Confirm your existing block’s sheave Ø (120 mm), axle/bore Ø (24 mm) and thickness (25 mm) before ordering.
-
Intended for rope up to 18 mm; for wire, use the corresponding Antal wire-specific sheaves.
