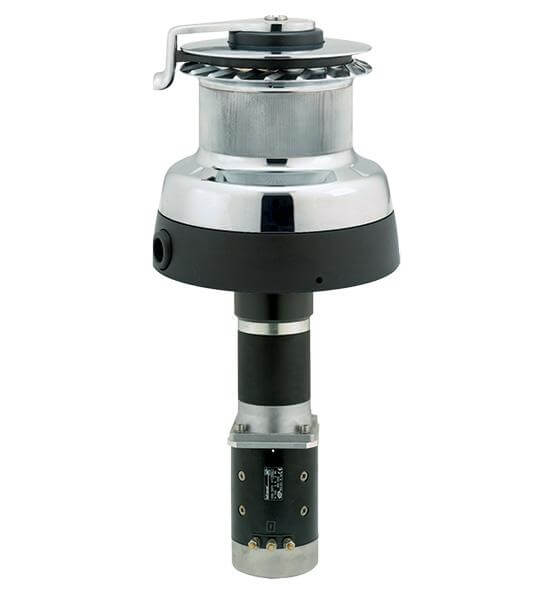

Antal 80 3-Speed Electric (Vertical) 24V Chromed Bronze Maxi Winch (3-Speed Manual)
MPN:
N/A
Brand:
Antal
Specifications for Antal 80 3-Speed Electric (Vertical) 24V Chromed Bronze Maxi Winch (3-Speed Manual)
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 22 |
| Recommended line - Min Ø (mm) | 12 |
| Electrics | |
| Voltage (V) | 24 |
| Power (W) | 2000 |
| Speed (Motor) | 3-Speed |
| Boat | |
| Style | Vertical |
| Dimensions | |
| A (mm) | 203 |
| B (mm) | 334 |
| C (mm) | 115 |
| D (mm) | 339 |
| d (mm) | 210 |
| E (mm) | 73 |
| H (mm) | 338 |
| Base Ø (mm) | 339 |
| Drum Ø (mm) | 210 |
| Height (mm) | 338 |
| Motor Length (mm) | 334 |
| Winches | |
| Gear ratio 1 (X : 1) | 4.6 |
| Gear ratio 2 (X : 1) | 12.6 |
| Gear ratio 3 (X : 1) | 34.2 |
| Gears (Manual) | 3-Speed |
| Line recovery per rotation - 1st gear (mm) | 147 |
| Line recovery per rotation - 2nd gear (mm) | 53 |
| Line recovery per rotation - 3rd gear (mm) | 20 |
| Line speed - 1st gear (m/min) | 24 |
| Line speed - 2nd gear (m/min) | 9 |
| Line speed - 3rd gear (m/min) | 3 |
| Power ratio 1 (X : 1) | 11 |
| Power ratio 2 (X : 1) | 30 |
| Power ratio 3 (X : 1) | 81.4 |
| Pulling load - Max (kg) | 4000 |
| Skirt Details | Black Aluminium |
| Material | |
| Material | Chromed Bronze |
| Undefined | |
| Deck thickness Max (mm) | 73 |
| Size | 80 |
| Weight | |
| Weight (g) | 75000 |
| Warranty (yrs) | 3 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
