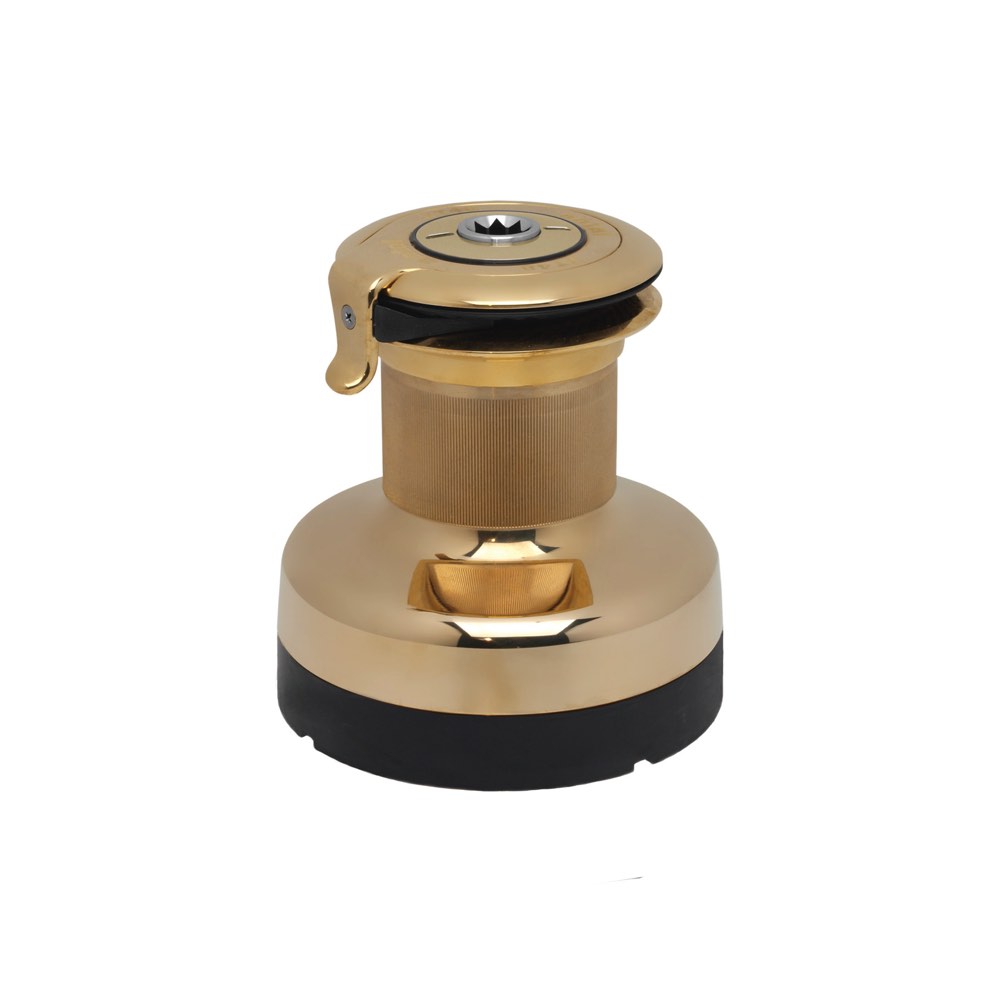

Specifications for Antal 66 3-Speed Self-Tailing Bronze Winch
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 18 |
| Recommended line - Min Ø (mm) | 10 |
| Boat | |
| Style | Self-Tailing |
| Dimensions | |
| Base Ø (mm) | 248 |
| Drum Ø (mm) | 144 |
| Height (mm) | 293 |
| Winches | |
| Gear ratio 1 (X : 1) | 3.1 |
| Gear ratio 2 (X : 1) | 6 |
| Gear ratio 3 (X : 1) | 18.8 |
| Gears (Manual) | 3-Speed |
| Line recovery per rotation - 1st gear (mm) | 151 |
| Line recovery per rotation - 2nd gear (mm) | 77 |
| Line recovery per rotation - 3rd gear (mm) | 24 |
| Power ratio 1 (X : 1) | 10.7 |
| Power ratio 2 (X : 1) | 20.8 |
| Power ratio 3 (X : 1) | 65.3 |
| Material | |
| Material | Bronze |
| Undefined | |
| Size | 66 |
| Weight | |
| Weight (g) | 28400 |
| Warranty (yrs) | 3 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
