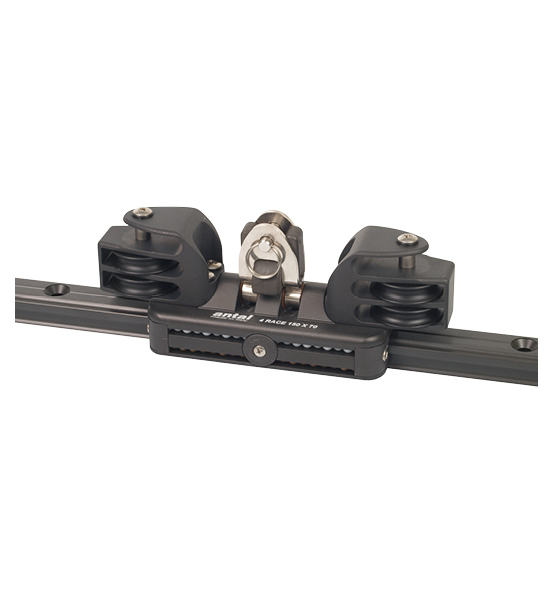

Antal 4Race 150 Traveller Car – 5:1 Control (Part No. 4155)
The Antal 4Race 150 Traveller Car – 5:1 Control is purpose-built for yachts in the 36–42 ft range, running on the 31x21 mm 4Race track. It is designed to be paired with the Antal 4Race 150–190 End Control – Triple Sheave (4276) to create a 5:1 purchase traveller control system, offering powerful trimming capability and smooth, precise adjustment under load.
Each end of the car is fitted with two 45 mm sheaves and a central becket. In a standard 5:1 configuration, the control line is dead-ended on the becket at the car, runs through the triple sheave on the end control, back to one of the car’s sheaves, forward to the second sheave on the end control, back to the second car sheave, and finally forward to the third sheave on the end control before exiting through the cam cleat. This arrangement delivers maximum control with minimal effort.
The car is also set up to accept the Antal OPF 80 Single Block (not included), enabling a strong, low-profile, shackle-free connection to the mainsheet or other control systems.
Constructed from hard anodised aluminium for exceptional strength and corrosion resistance, the 4Race 150 Traveller Car runs on four independent ball bearing circuits — two Torlon® (lower) for high-load capacity and two Delrin® (upper) for smooth movement. Side windows allow for quick cleaning, inspection, or replacement of bearings.
Key Features:
-
For yachts from 36–42 ft
-
Fits Antal 31x21 mm 4Race track
-
Designed for use with End Control 4276 (Triple Sheave) in a 5:1 purchase system
-
Two 45 mm sheaves and a becket at each end of the car
-
Control line routing provides efficient 5:1 mechanical advantage
-
Compatible with OPF 80 Single Block (not included)
-
Four ball bearing circuits: 2 Torlon® (lower), 2 Delrin® (upper)
-
Side windows for easy bearing maintenance
-
Hard anodised aluminium construction for strength and corrosion resistance
-
Works with cam cleats 4410 (3-position) or 4430 (fixed for 150–190 cars)
