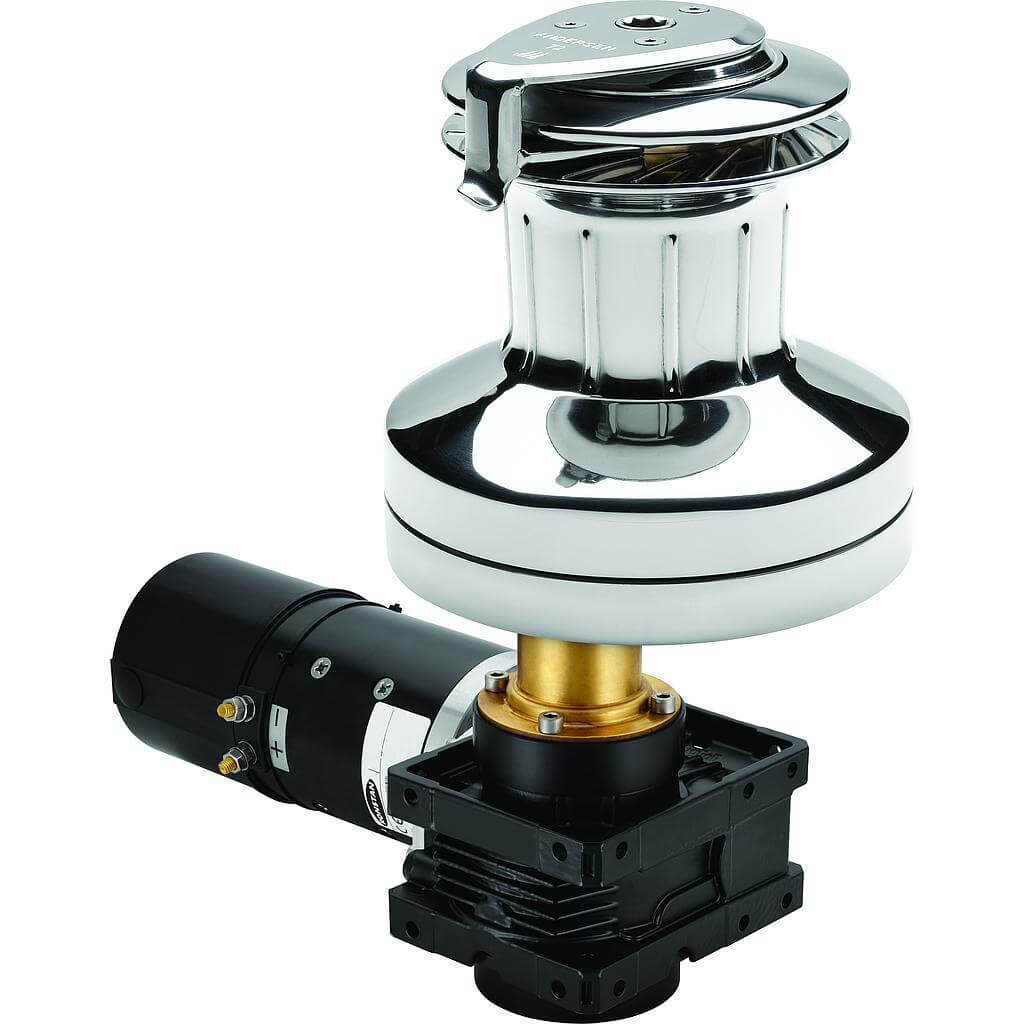

Andersen 72 1-Speed Electric (Horizontal) 24V Stainless Steel E1 Winch (2-Speed Manual)
Specifications for Andersen 72 1-Speed Electric (Horizontal) 24V Stainless Steel E1 Winch (2-Speed Manual)
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 18 |
| Recommended line - Min Ø (mm) | 10 |
| Electrics | |
| Voltage (V) | 24 |
| Power (W) | 1500 |
| Speed (Motor) | 1-Speed |
| Boat | |
| Style | Horizontal |
| Dimensions | |
| B (mm) | 280 |
| D (mm) | 140 |
| H (mm) | 289 |
| J (mm) | 213 |
| K (mm) | 41 |
| L (mm) | 129 |
| N (mm) | 384 |
| S (mm) | 75 |
| Base Ø (mm) | 280 |
| Drum Ø (mm) | 140 |
| Height (mm) | 289 |
| Line entry height (mm) | 129 |
| Motor Depth (mm) | 213 |
| Motor Length (mm) | 384 |
| Winches | |
| Gear ratio 1 (X : 1) | 5.8 |
| Gear ratio 2 (X : 1) | 20.3 |
| Gears (Manual) | 2-Speed |
| Line recovery per rotation - 1st gear (mm) | 76 |
| Line recovery per rotation - 2nd gear (mm) | 22 |
| Line speed - 1st gear (m/min) | 15 |
| Power ratio 1 (X : 1) | 20.7 |
| Power ratio 2 (X : 1) | 72.6 |
| Pulling load - Max (kg) | 2000 |
| Skirt Details | Integrated |
| Material | |
| Material | Stainless Steel |
| Undefined | |
| Deck thickness Max (mm) | 41 |
| Size | 72 |
| Weight | |
| Weight (g) | 42000 |
|
Andersen - Product manual 68ST FS v3.0.F _ 72ST FS v2.0.F Full Stainless Self-Tailing Winches (A4).pdf
|
|
|
|
Winch Mounting Orientation.pdf
|
|
|
|
Winch Mounting Dimension Templates - E1 Electric Self Tailing Winches, Size 68 _ 72 - Paper size A3.pdf
Winch Mounting Dimension Templates - Paper size A3
|
|
|
|
Andersen Winch Selection Guide.pdf
|
|
|
|
WP - Winch selection guide.pdf
|
|
|
|
2020 Andersen Winches Catalogue.pdf
2020 Catalogue
|
Self-Tailing Electric Winches - E1 Single Speed Motor, 1 electric speed + 2 manual speeds
Efficient, high quality motor
At the heart of each Andersen Two and Three Speed electric winch is a powerful European engineered and manufactured series wound motor. Carefully matched with the optimum gearbox these winches deliver high speed at low load for fast sheeting in, and low speed at high load for safe, fine tuning when trimming. For maximum performance and efficiency they are supplied in a 24 volt version, providing smooth operation across a wide working load range.
Illuminated “intelligent” Push Button
E1 winches are supplied with push button with integrated LED which illuminates when power to the winch system is on. The push button incorporates a hinged safety cover to prevent inadvertent winch operation and is water resistant rated to IP67. The push button also acts with the controller to flash status codes that assist with trouble shooting in the event of overload or where other system protection intervention occurs.
Manual operation
2-speed manual operation is always available as a backup; to winch beyond the pre-set maximum pull load (but below the winch Max Working Load) or just for the experience.
Specifications
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 18 |
| Recommended line - Min Ø (mm) | 10 |
| Electrics | |
|---|---|
| Voltage (V) | 24 |
| Power (W) | 1500 |
| Speed (Motor) | 1-Speed |
| Boat | |
|---|---|
| Style | Horizontal |
| Dimensions | |
|---|---|
| B (mm) | 280 |
| D (mm) | 140 |
| H (mm) | 289 |
| J (mm) | 213 |
| K (mm) | 41 |
| L (mm) | 129 |
| N (mm) | 384 |
| S (mm) | 75 |
| Base Ø (mm) | 280 |
| Drum Ø (mm) | 140 |
| Height (mm) | 289 |
| Line entry height (mm) | 129 |
| Motor Depth (mm) | 213 |
| Motor Length (mm) | 384 |
| Winches | |
|---|---|
| Gear ratio 1 (X : 1) | 5.8 |
| Gear ratio 2 (X : 1) | 20.3 |
| Gears (Manual) | 2-Speed |
| Line recovery per rotation - 1st gear (mm) | 76 |
| Line recovery per rotation - 2nd gear (mm) | 22 |
| Line speed - 1st gear (m/min) | 15 |
| Power ratio 1 (X : 1) | 20.7 |
| Power ratio 2 (X : 1) | 72.6 |
| Pulling load - Max (kg) | 2000 |
| Skirt Details | Integrated |
| Material | |
|---|---|
| Material | Stainless Steel |
| Undefined | |
|---|---|
| Deck thickness Max (mm) | 41 |
| Size | 72 |
| Weight | |
|---|---|
| Weight (g) | 42000 |
