Sale

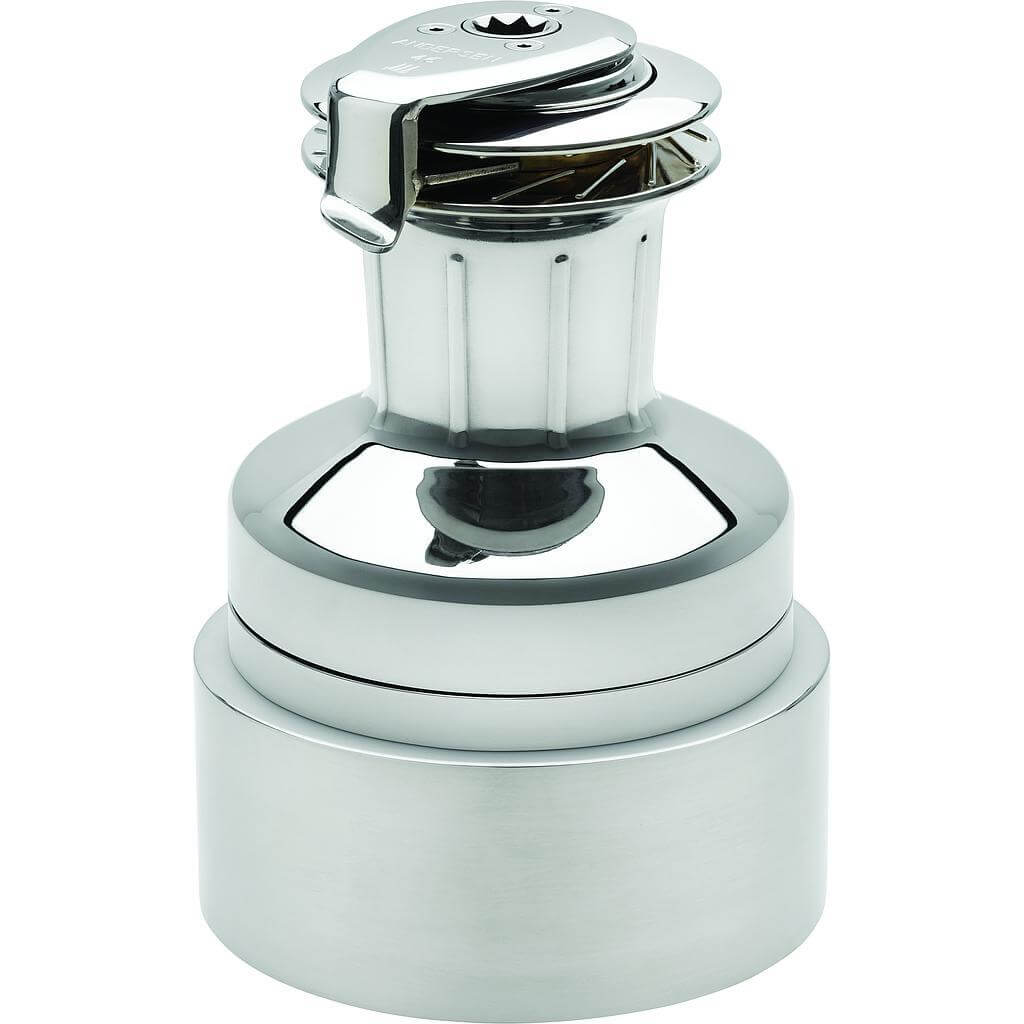

Andersen 46 Variable Speed Electric (Compact) 24V Stainless Steel Above Deck Winch (2-Speed Manual)
MPN:
N/A
Brand:
Andersen
Specifications for Andersen 46 Variable Speed Electric (Compact) 24V Stainless Steel Above Deck Winch (2-Speed Manual)
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 8 |
| Electrics | |
| Voltage (V) | 24 |
| Speed (Motor) | Variable Speed |
| Boat | |
| Style | Compact |
| Dimensions | |
| B (mm) | 181 |
| D (mm) | 89 |
| H (mm) | 208 |
| J (mm) | 85 |
| L (mm) | 175 |
| S (mm) | 200 |
| U (mm) | 40 - 75 |
| Base Ø (mm) | 181 |
| Drum Ø (mm) | 89 |
| Height (mm) | 208 |
| Line entry height (mm) | 175 |
| Motor Height (mm) | 85 |
| Motor Length (mm) | 200 |
| Winches | |
| Gear ratio 1 (X : 1) | 2.8 |
| Gear ratio 2 (X : 1) | 8.4 |
| Gears (Manual) | 2-Speed |
| Line recovery per rotation - 1st gear (mm) | 100 |
| Line recovery per rotation - 2nd gear (mm) | 33 |
| Line speed - 1st gear (m/min) | 18 |
| Power ratio 1 (X : 1) | 15.7 |
| Power ratio 2 (X : 1) | 47.1 |
| Pulling load - Max (kg) | 850 |
| Skirt Details | Integrated |
| Material | |
| Material | Stainless Steel |
| Undefined | |
| Deck thickness Max (mm) | 28 |
| Size | 46 |
| Weight | |
| Weight (g) | 19000 |
| Warranty (yrs) | 2 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Andersen - Product manual 46ST v5.0 _ 46ST FS v5.0.F _ 50ST v.2.0 _ 50ST FS v.2.0.F Black Trim and Full Stainless Self-Tailing Winches (A4).pdf
|
|
|
|
Winch Mounting Orientation.pdf
|
|
|
|
Winch Mounting Dimension Templates - Compact Motor Above Deck Self Tailing Winches, Size 28 34 40 46 50 - Paper size A3.pdf
Winch Mounting Dimension Templates - Paper size A3
|
|
|
|
Andersen Winch Selection Guide.pdf
|
|
|
|
WP - Winch selection guide.pdf
|
|
|
|
2020 Andersen Winches Catalogue.pdf
2020 Catalogue
|
