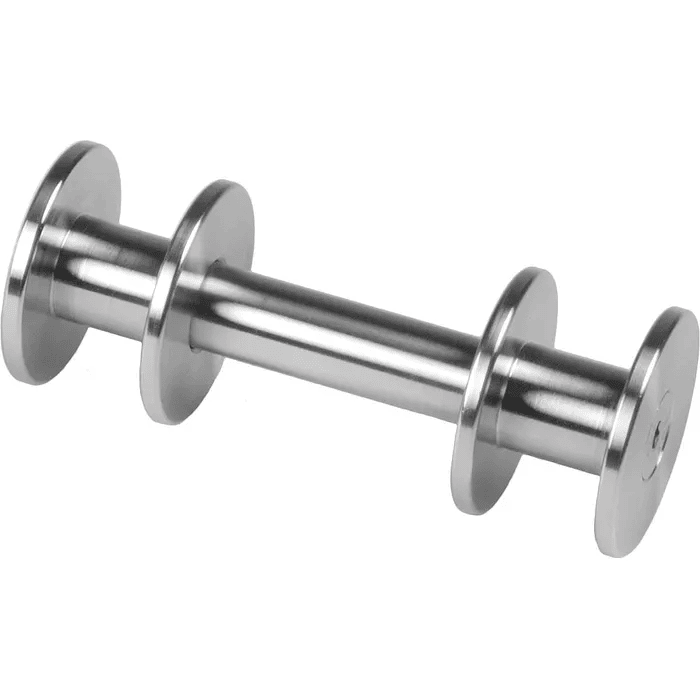

Specifications for Ronstan Series 160 furler - Top swivel lashing pin
| Boat | |
|---|---|
| Load | |
| SWL (kg) | 3000 |
| NBL (kg) | 6000 |
| Dimensions | |
| A (mm) | 8 |
| B (mm) | 33.8 |
| C (mm) | 12 |
| D (mm) | 9.9 |
| E (mm) | 59.8 |
| F (mm) | 28 |
| Pin Ø (mm) | 10 |
| Material | |
| Material | Stainless Steel |
| Weight | |
| Weight (g) | 90 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
R-RS216100_Ronstan S160 Gen 2 Top Down Furler Manual_001.pdf
Ronstan Series 160 Gen 2 Top Down Furler Manual
|
|
|
|
R-RS216000_Ronstan S160 Gen 2 Bottom Up Furler Manual_001.pdf
Ronstan Series 160 Gen 2 Bottom Up Furler Manual
|
|
|
|
R-RS216100_Ronstan S160 Gen 2 Top Down Furler Drawing_001.PDF
Ronstan S160 Gen 2 Top Down Furler Technical Drawing
|
|
|
|
R-RS216000_Ronstan S160 Gen 2 Furler Drawing_001.PDF
Ronstan S160 Gen 2 Furler Technical Drawing
|
