Lopolight 2NM 180° White Light – Vertical Mount, 6m Cable (Silver or Black Anodised)
[Specialist sector light – For vessels under 20m or signalling applications]
The Lopolight 2NM 180° White Light with 6-metre cable is a specialist LED sector light designed for restricted manoeuvring signals and other custom navigation applications. Emitting a precise 180° white beam visible to 2 nautical miles, it is not a standard leisure navigation light but instead forms part of COLREG-compliant signalling arrays for certain vessels.
This vertical-mount model is made from anodised aluminium and available in Silver or Black finishes. Rated IP68, the epoxy-filled electronics are fully sealed against saltwater, UV, and vibration, making it suitable for harsh marine environments.
The 6-metre marine-grade cable offers greater flexibility for installations with longer routing paths or more complex wiring layouts.
Key Features
- Designed for specialist applications such as restricted manoeuvring or custom signalling
- Emits a 180° white beam, visible to 2NM

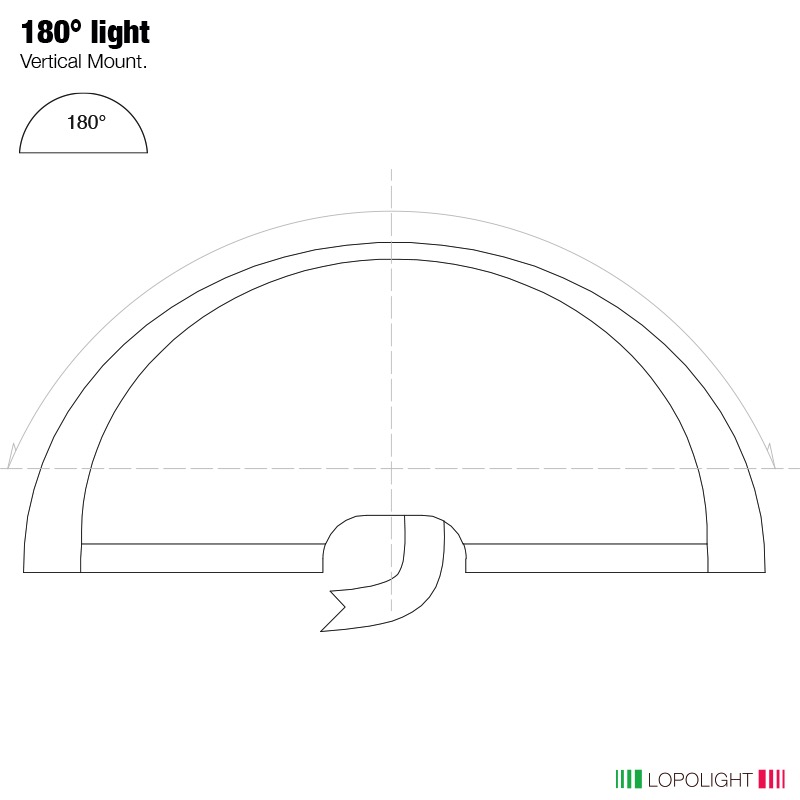

- Vertical mount – compact for mast or superstructure fitting

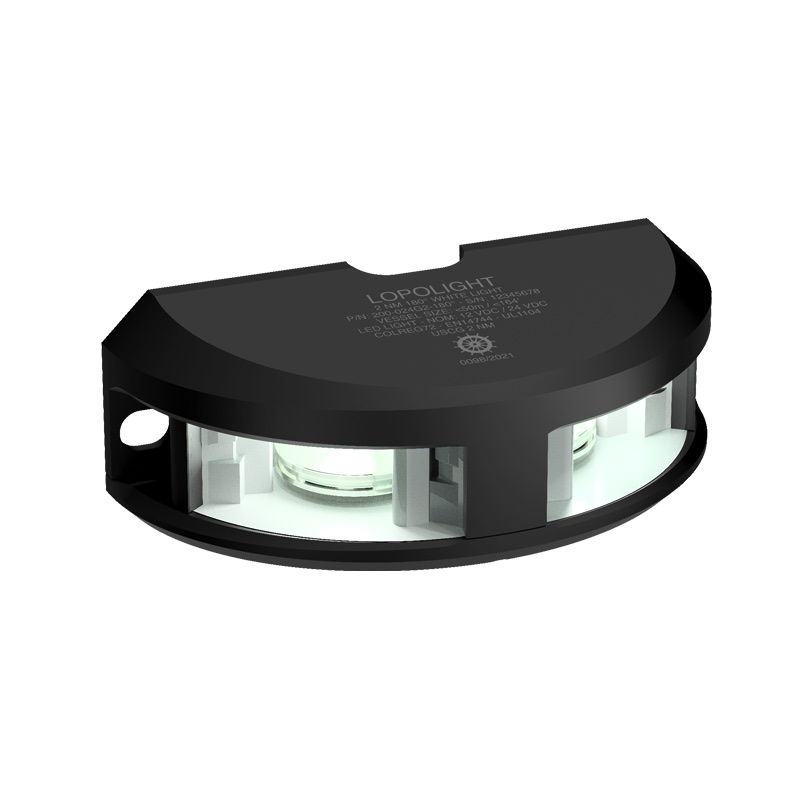

- Available in Silver or Black anodised aluminium housing
- IP68 sealed with epoxy-filled electronics for marine reliability
- Supplied with 6m marine-grade cable
- Low power draw – efficient LED output at 10–32 V
- Fully compliant with COLREG72 when used in correct light configurations
- Alternative versions available with 0.7m or 20m cable (Silver or Black anodised)
Spezifikationen
| Boat size (m) | 20-50M oder 12-20M oder Under 12M |
| Farbe | Schwarz oder Silber |
| Material | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane oder Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Connection | 6m cable |
| Operating temperature | -25°C to 55°C |
| Current draw (mA @ 12VDC) | 137 |
| Current draw (mA @ 24VDC) | 80 |
| Approved to | COLREG72, EN14744, IEC 60945, USCG |
| Luminous Intensity (cd) | >5.4 |
| Power supply type | dc. |
| Sichtweite (NM) | 2 |
| Spannung unter Betrieb | 10-32 |
| Wasserdichtigkeit | IP68 |
| Gewicht (g) | 480 |
