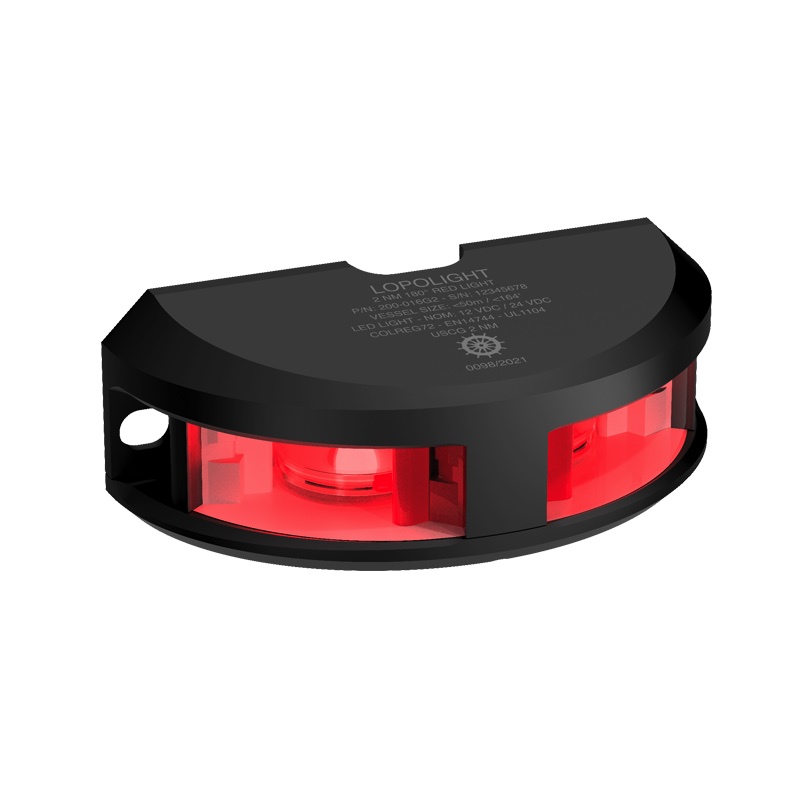

Lopolight 2NM 180° Red Light – Vertical Mount, 0.75m Cable (Silver or Black Anodised)
[Sector light – For vessels under 20m or specialist applications]
The Lopolight 2NM 180° Red Light is a precision LED sector light designed for vessels under 20 metres or specialist navigation and signalling applications. It projects a sharp 180° red beam visible to 2 nautical miles, delivering clear and compliant performance.
This vertical-mount model is built from anodised aluminium and available in Silver or Black finishes for durability and corrosion resistance. Rated IP68, the epoxy-filled electronics are fully sealed to withstand saltwater, UV, and vibration.
Supplied with a 0.75-metre marine-grade cable, it is compact and straightforward to install.
Key Features
- Suitable for vessels under 20 metres or signalling applications
- Emits a 180° red beam, visible to 2NM
- Vertical mount – ideal for mast or superstructure installations
- Available in Silver or Black anodised aluminium housing
- IP68 sealed with epoxy-filled electronics for marine reliability
- Supplied with 0.75m marine-grade cable
- Low power draw – efficient LED output at 10–32 V
- Fully compliant with COLREG72 and international standards
- Alternative versions available with 6m or 20m cable (Silver or Black anodised)
- Installation guide
Specifications
| Boat size (m) | 20-50M or 12-20M or Under 12M |
| Colour* | Black or Silver |
| Material | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane or Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Connection | 0.75m cable |
| Dimensions (mm) | 104 mm x 37 mm x 45 mm |
| Operating temperature | -25°C to 55°C |
| Feed wire gauge Min | 0.5mm2 AWG22 |
| Current draw (mA @ 12VDC) | 145 |
| Current draw (mA @ 24VDC) | 60 |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Luminous Intensity (cd) | >5.4 |
| Power supply type | dc. |
| Visibility (NM) | 2 |
| Power (W) | 1.5 |
| Operating voltage (V) | 10-32 |
| Warranty (yrs) | 5 year limited warranty |
| Water resistance | IP68 |
| Weight (g) | 340 |
