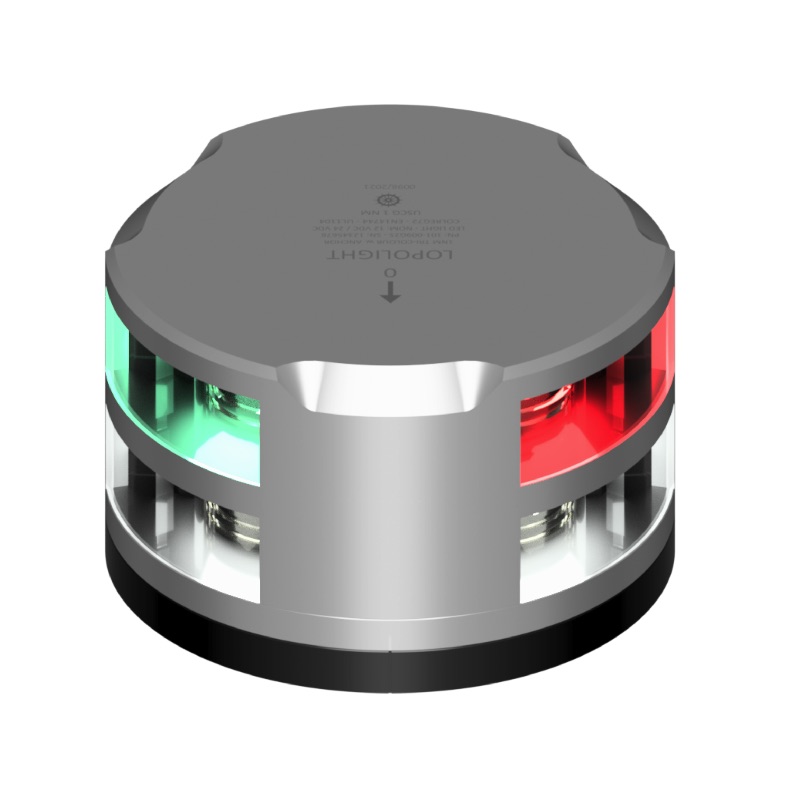

Lopolight 1NM Tri-colour / Anchor – 22m Cable (Silver Anodised)
[Tri-function masthead light – For sailing vessels under 12m]
The Lopolight 1NM Tri-colour / Anchor with 22-metre cable offers the same reliable dual-function navigation and anchor light performance as the standard model, now with extended cable length for larger rigs or more complex cable routing.
Designed for sailing vessels under 12 metres, this unit combines a tri-colour navigation light (port, starboard, stern) with a 360° white anchor light in one compact masthead fitting. It emits three sharp beams — 112.5° red (port), 112.5° green (starboard), and 135° white (stern) — each visible to 1 nautical mile, and switches to full-circle white when anchored.
The light is constructed from durable silver anodised aluminium with a flat-base mount, and is internally IP68 sealed and epoxy bonded to protect against water ingress, vibration, and UV damage. The 22-metre marine-grade cable provides added flexibility for taller masts or complex installations.
Key Features:
- Suitable for sailing vessels under 12 metres
- Dual function: Tri-colour navigation + Anchor light in one unit
- Sector angles: 112.5° (port/starboard), 135° (stern), 360° (anchor)
- Extended 22m marine-grade cable for larger or more complex rigs
- Silver anodised aluminium housing with flat-base masthead mount
- IP68 sealed, epoxy-filled for marine durability
- Low power draw – ~2 W total at 10–32 V
- Fully compliant with COLREG72, EN14744, and USCG standards
Specifications
| Connection | 22m cable |
| Dimensions (mm) | Ø92,5mm x 68mm |
| Operating temperature | -25°C to 55°C |
| Current draw (mA @ 12VDC) | 150 |
| Current draw (mA @ 24VDC) | 81 |
| Boat size (m) | Under 12M |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Power supply type | dc. |
| Visibility (NM) | 1 |
| Operating voltage (V) | 10-32 |
| Material | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Water resistance | IP68 |
| Weight (g) | 1940 |
