Specifications for Lewmar DC2 Rope Clutch 10-12mm, Triple
| Width (mm) | 99 |
| Length (mm) | 156 |
| Recommended line - Max Ø (mm) | 12 |
| Recommended line - Min Ø (mm) | 10 |
| Height (mm) | 88 |
| SWL (kg) | 700 |
| A (mm) | 26 |
| B (mm) | 32 |
| E (mm) | 30.5 |
| F (mm) | 107 |
| Weight (g) | 1674 |

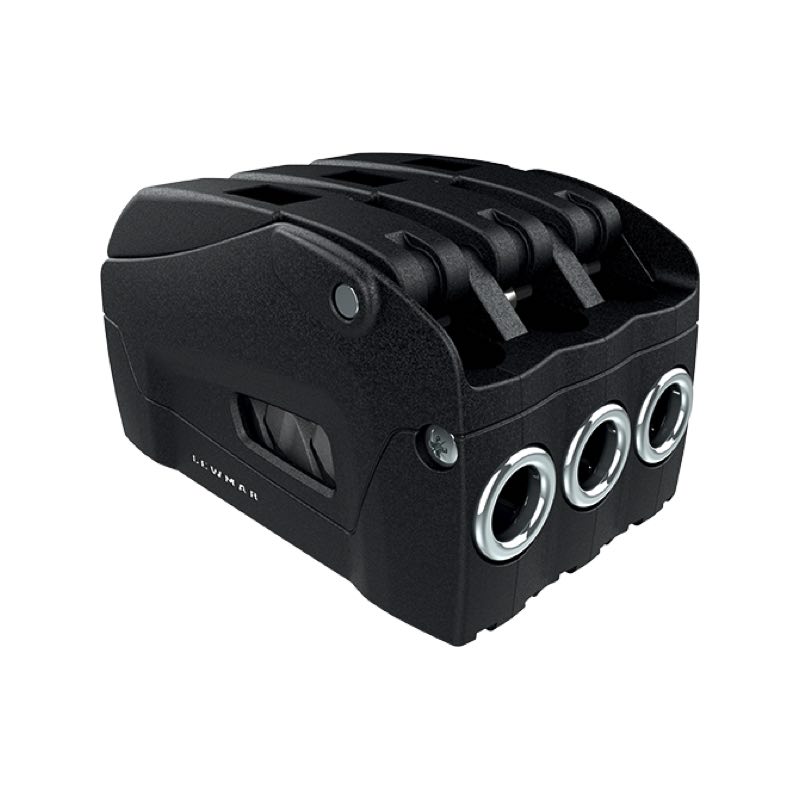

The Lewmar DC2 Triple Rope Clutch (10-12mm) is a high-load, multi-line clutch designed for secure and efficient management of three lines within the 10mm to 12mm diameter range. With a Safe Working Load (SWL) of 700kg per line, this clutch provides exceptional holding power while minimising rope wear, making it an excellent choice for halyards, reefing lines, and other high-load applications. Thanks to Lewmar’s innovative Domino Cluster technology, it ensures a secure grip with smooth and controlled release, even under load.
Key Features:
- Domino Cluster Mechanism: Unlike traditional cam-based clutches, the DC2’s Domino Cluster system tilts and flexes the line rather than crushing it, providing maximum holding strength with minimal wear, preserving rope integrity over time.
- Triple-Line Management: Designed to securely handle three independent lines, allowing for a streamlined and efficient deck layout, ideal for performance-driven sailing applications.
- Smooth & Controlled Release: The pull-back handle design, combined with Lewmar’s patented clutching system, enables gradual and precise release, even under full load, giving sailors greater control in critical manoeuvres.
- High-Strength & Durable Construction: Built with reinforced composite materials and stainless steel fairleads, this clutch is lightweight yet incredibly strong, ensuring long-term performance in demanding conditions.
Specifications:
- Line Size Compatibility: 10mm to 12mm (3/8" to 7/16")
- Safe Working Load (SWL): 700kg (1543 lbs) per line
- Dimensions:
- Length: 156mm (6 1/8")
- Width: 99mm (3 7/8")
- Height: 88mm (3 7/16")
The Lewmar DC2 Triple Rope Clutch (10-12mm) is a versatile and space-efficient solution for sailors who need to securely manage multiple lines with ease. Its rugged construction, innovative grip technology, and smooth operation make it a trusted choice for high-performance sailing applications.
Specifications
| Width (mm) | 99 |
| Length (mm) | 156 |
| Recommended line - Max Ø (mm) | 12 |
| Recommended line - Min Ø (mm) | 10 |
| Height (mm) | 88 |
| SWL (kg) | 700 |
| A (mm) | 26 |
| B (mm) | 32 |
| E (mm) | 30.5 |
| F (mm) | 107 |
| Weight (g) | 1674 |
