Digital Load Cells – Essential Technology for Performance Sailing

Digital load cells have revolutionised sailboat rigging and sail trim optimisation, providing real-time load measurement for key control lines and rigging components. These advanced sensors allow sailors to move beyond traditional tuning guides and subjective feel, instead relying on accurate, real-time load data to optimise performance. Whether racing or cruising, digital load cells enhance rig efficiency, improve sail handling, and protect deck hardware from excessive loads.

By tracking and analysing dynamic loads, sailors can fine-tune their setup to match prevailing conditions, ensuring rig and sail settings are always optimised. The ability to monitor changes in rig tension while sailing allows for immediate adjustments, providing a competitive advantage for racing sailors and increased comfort and safety for cruisers. Digital load sensors can be applied to various rigging components, including forestays, shrouds, vangs, sheets, backstays, and runners, ensuring that loads remain within optimal parameters.

Cyclops Marine – Smart Load Cell Sensor Technology

Cyclops Marine has set the standard in digital load sensing with its SmartLink and SmartTune ranges, offering lightweight, wireless solutions designed for modern sailing rigs.

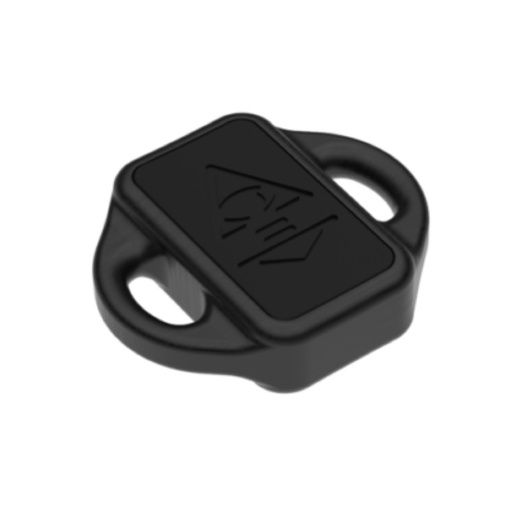

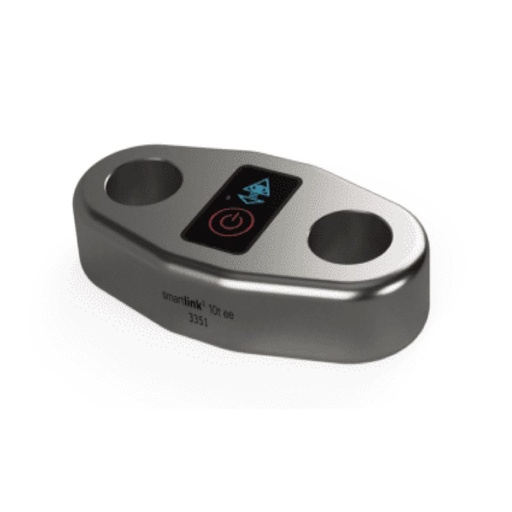

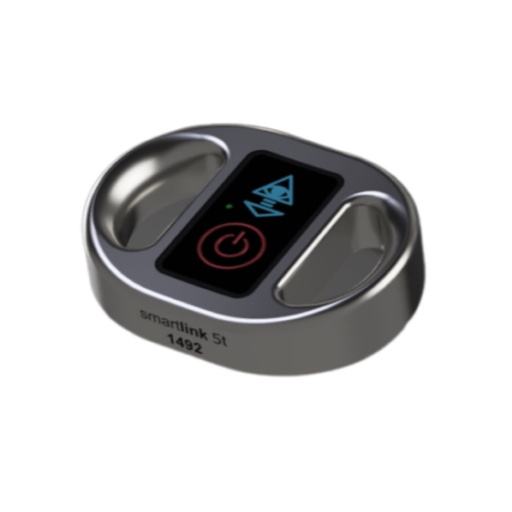

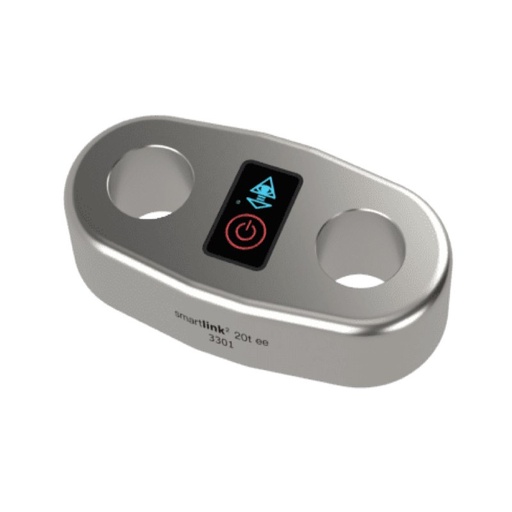

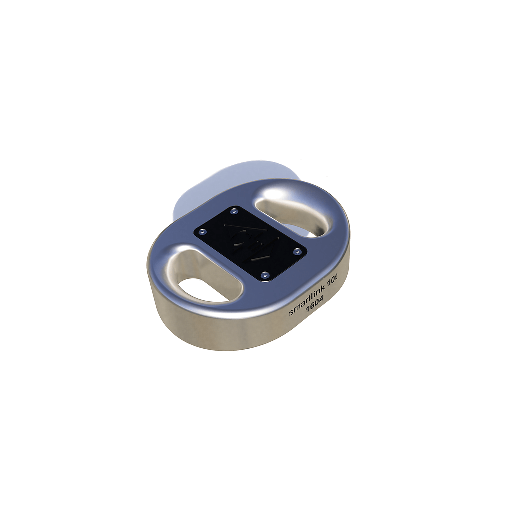

SmartLink – Dynamic Load Measurement for Soft Rigging

SmartLink is an in-line load sensor designed to be installed directly onto soft rigging components such as sheets, halyards, runners, and even control lines. With no need to modify existing hardware, it provides an instant solution for monitoring live loads in real-time. SmartLink is particularly beneficial in high-load applications such as gennaker or spinnaker sheet trimming, mainsail sheet loads, and halyard tension monitoring.

By integrating with onboard instruments or mobile devices via Bluetooth, SmartLink allows sailors to see live load data while on the water. This enables adjustments in real-time, ensuring that sails remain perfectly trimmed to match wind and wave conditions. For racing yachts, this data-driven approach eliminates guesswork, leading to better repeatability in fast settings and improved sail longevity by avoiding overloading.

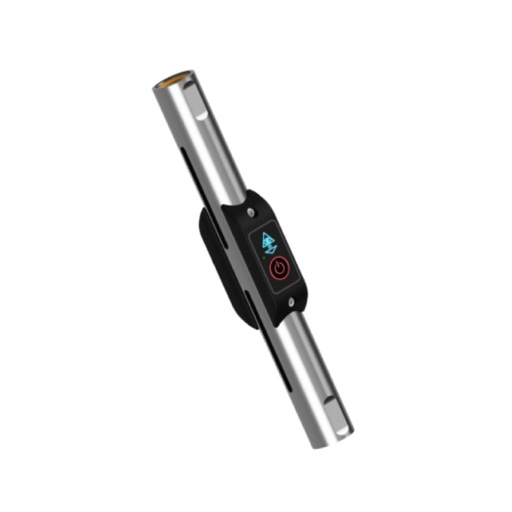

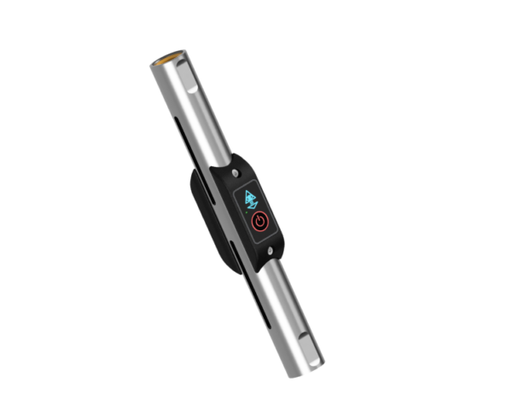

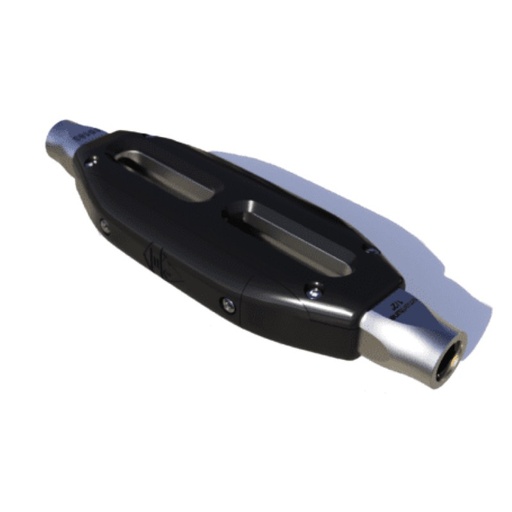

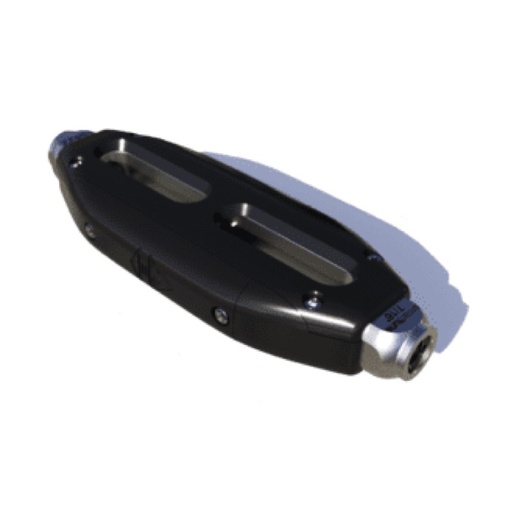

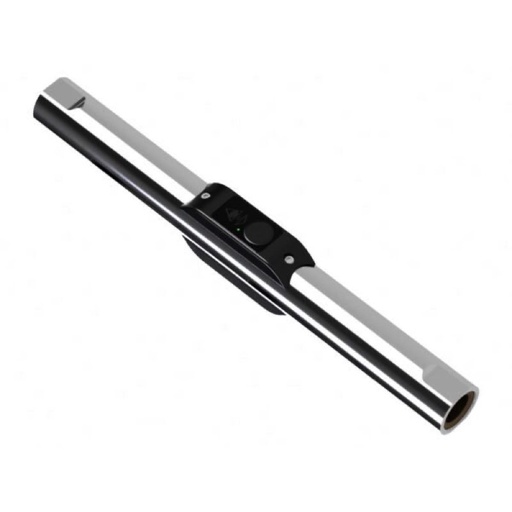

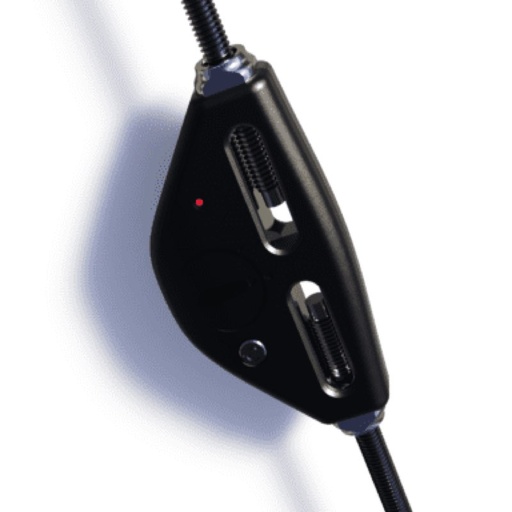

SmartTune – Precise Rig Tuning with Wireless Turnbuckles

SmartTune replaces standard rigging turnbuckles with an integrated load-sensing unit that provides precise forestay and shroud load data. Available in various sizes to suit different yacht classes, SmartTune enables sailors to monitor rig tension with accuracy, ensuring the mast remains tuned for optimal upwind and downwind performance.

By recording and analysing historical load data, SmartTune allows teams to return to proven fast settings, making repeatability in rig tuning easier. In shifting conditions, sailors can monitor rig load changes in real time and make necessary adjustments to maintain balance and drive efficiency. Whether for grand prix racing teams or serious performance cruisers, SmartTune provides a level of rig control previously only achievable through shore-based load testing.

Spinlock Load Cell Sensors – Reliable Load Monitoring for Performance Sailing

Spinlock’s Load Sense system is designed for sailors who require durable and versatile load-sensing solutions for running rigging. The Load Sense soft loop is an innovative design that provides accurate load measurement in key control lines without compromising weight or performance. This makes it ideal for applications such as:

• Main and jib sheet loads – Ensuring sails are trimmed efficiently without overloading control systems.
• Vang and cunningham adjustment – Monitoring changes in mainsail shape through load feedback.
• Backstay and forestay tension – Maintaining optimal forestay sag and mast bend for upwind and downwind performance.
• Code zero and gennaker furling systems – Preventing excessive loads that could damage furling drums or lead to poor sail furling performance.

With real-time data integration into on-board displays, Spinlock’s Load Sense technology enhances the ability to make quick, informed decisions about sail trim and rig setup. By tracking load variations over time, sailors can identify trends and refine their approach to tuning, reducing stress on sails and rigging while optimising boat speed.

Applications and Benefits of Digital Load Cells on Sailing Yachts

The benefits of digital load cells extend beyond simply tracking rig loads—they offer an entirely new way of optimising sailing performance based on data rather than feel. Their applications cover a wide range of critical areas on a sailboat:

Optimising Rig Tension for Different Conditions

Forestay and shroud tension have a direct impact on sail shape and performance. By using digital load cells, sailors can:

• Maintain consistent rig settings between races or passages.
• Adjust rig tension dynamically based on wind strength and sea state.
• Prevent excessive loads that could damage mast fittings or deck structures.

Enhancing Sail Trim for Maximum Efficiency

Load cells allow sailors to optimise sail shape by ensuring that sheet and halyard loads are balanced correctly. Key benefits include:

• More efficient sail trim leading to better upwind and downwind performance.
• Reduced drag and improved speed by preventing over-trimmed sails.
• Avoiding overloading sail fabrics, increasing the lifespan of expensive racing sails.

Protecting Hardware and Reducing Wear

Excessive loads can cause premature wear and even failure of deck hardware. Digital load monitoring helps sailors:

• Identify high-load areas before they cause hardware fatigue.
• Ensure that blocks, clutches, and winches are operating within safe load limits.
• Minimise sudden shock loads that could damage standing or running rigging.

Improving Repeatability and Data-Driven Performance

Competitive sailors rely on repeatability to maintain speed advantages. Digital load cells enable:

• Precise documentation of "fast" settings that can be used across different wind conditions.
• A more scientific approach to tuning, reducing reliance on manual feel.
• The ability to compare load data between training, racing, and different sail combinations.

Increasing Safety and Reducing Risk

For offshore and high-performance sailing, knowing real-time loads is a significant safety advantage. Load cells:

• Help prevent accidental rig overloads in extreme weather.
• Allow for controlled depowering strategies when necessary.
• Reduce the risk of unexpected rig failure by providing early warning of excessive loads.

The Future of Digital Load Cells in Sailing

As sailing technology continues to evolve, digital load cells are becoming an integral part of performance optimisation for both racing and cruising sailors. The integration of wireless data logging, Bluetooth connectivity, and real-time monitoring means that sailors now have more control over their rig and sail trim than ever before.

With brands like Cyclops Marine and Spinlock leading the way, load sensing is no longer just for grand prix campaigns—it is now accessible to a wide range of sailors looking to enhance their performance, protect their rig, and gain deeper insights into their boat’s dynamics. Whether you're fine-tuning a race yacht or optimising a performance cruiser, digital load cells provide a data-driven approach to better sailing.
