Specifications for Antal 4 Screws Padeye Ø10
| Fixing hole Ø (mm) | 8 |
| Number of fixing holes | 4 |
| Style | Fixed |
| Matériau | Acier inoxydable |
| Material Grade | AISI 316 |
| Charge de travail (kg) | 2500 |
| D (mm) | 75 |
| d (mm) | 10 |
| Poids (g) | 260 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

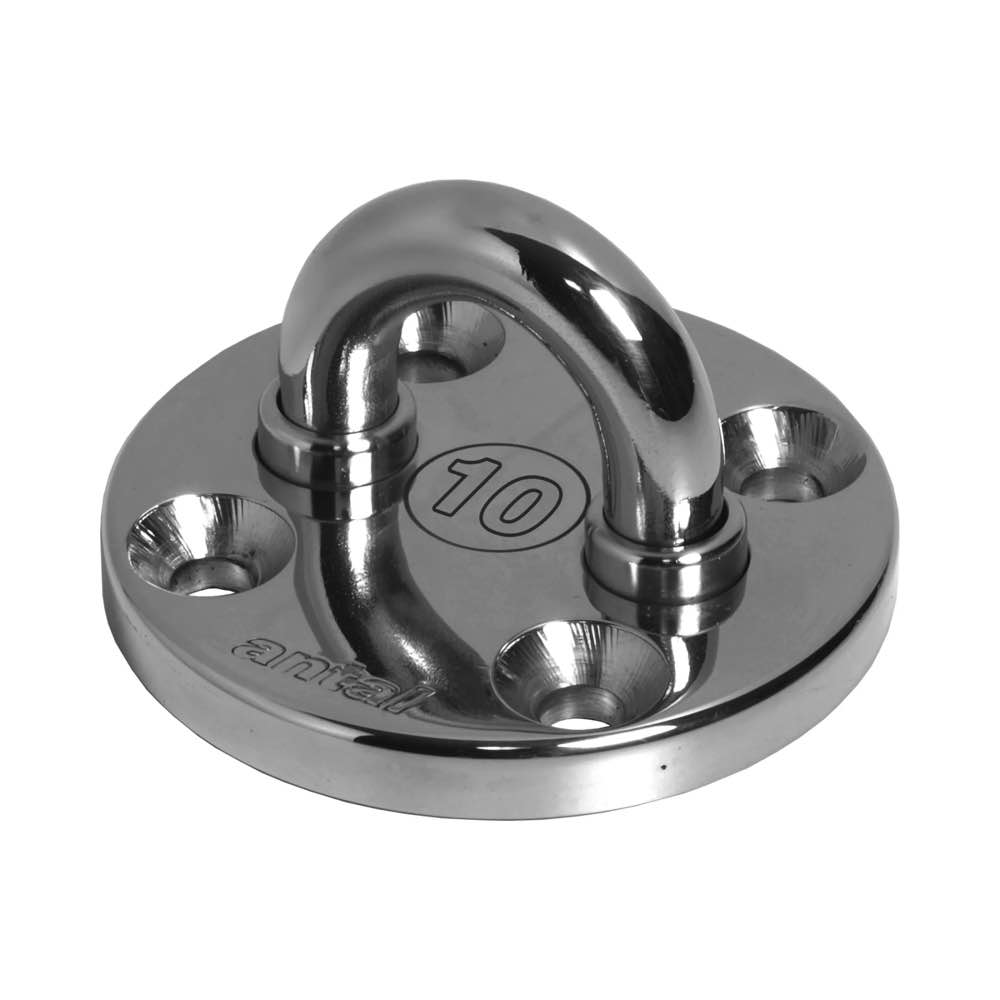

Antal Standard Padeye 10mm
The Antal Standard Padeye 10mm delivers strength and reliability with 316 stainless steel construction. With a Safe Working Load (SWL) of 2,500 kg, it is suited to higher-load applications requiring a secure, fixed attachment point.
A proven D-shape design ensures durability and simplicity, making it the standard choice for permanent deck fittings.
Features:
- 10mm gauge wire padeye, SWL 2,500 kg
- Marine-grade stainless steel, corrosion-resistant
- Traditional D-shape for secure, permanent installations
Applications:
- Heavy-duty block attachment points
- Lashing and tie-down points for larger yachts
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Fixing hole Ø (mm) | 8 |
| Number of fixing holes | 4 |
| Style | Fixed |
| Matériau | Acier inoxydable |
| Material Grade | AISI 316 |
| Charge de travail (kg) | 2500 |
| D (mm) | 75 |
| d (mm) | 10 |
| Poids (g) | 260 |
