F_Facnor LS-LX-RX Range Brochure EN_001.pdf
Facnor LS-LX-RX Drum Furling and Reefing Systems Manual
|
|
|
|
F_Facnor LS-LX-RX Measurements Connectors FR EN_001.pdf
Facnor LS-LX-RX Connectors Measurements Diagram- French/English
|
|
|
|
F_Facnor LS-LX-RX Installation Manual FR EN_001.pdf
Facnor LS-LX-RX Installation and User Manual Version 2016- French/English
|
|
|
|
F_Facnor LS-LX-RX Installation Manual EN_001.pdf
Facnor LS-LX-RX Installation and User Manual Version 2016
|
|
|
|
F_Facnor Catalogue 2019-2020 EN_001.pdf
Facnor Products Catalogue 2019-2020
|
|
|
|
F-LS_Facnor Exploded View Furling System FR EN_002.PDF
Facnor Exploded View LS Furling System Spare Parts Diagram- French/English
|
|
|
|
F-LS_Facnor Exploded View Furling System FR EN_001.PDF
Facnor Exploded View LS Furling System Spare Parts Diagram- French/English
|

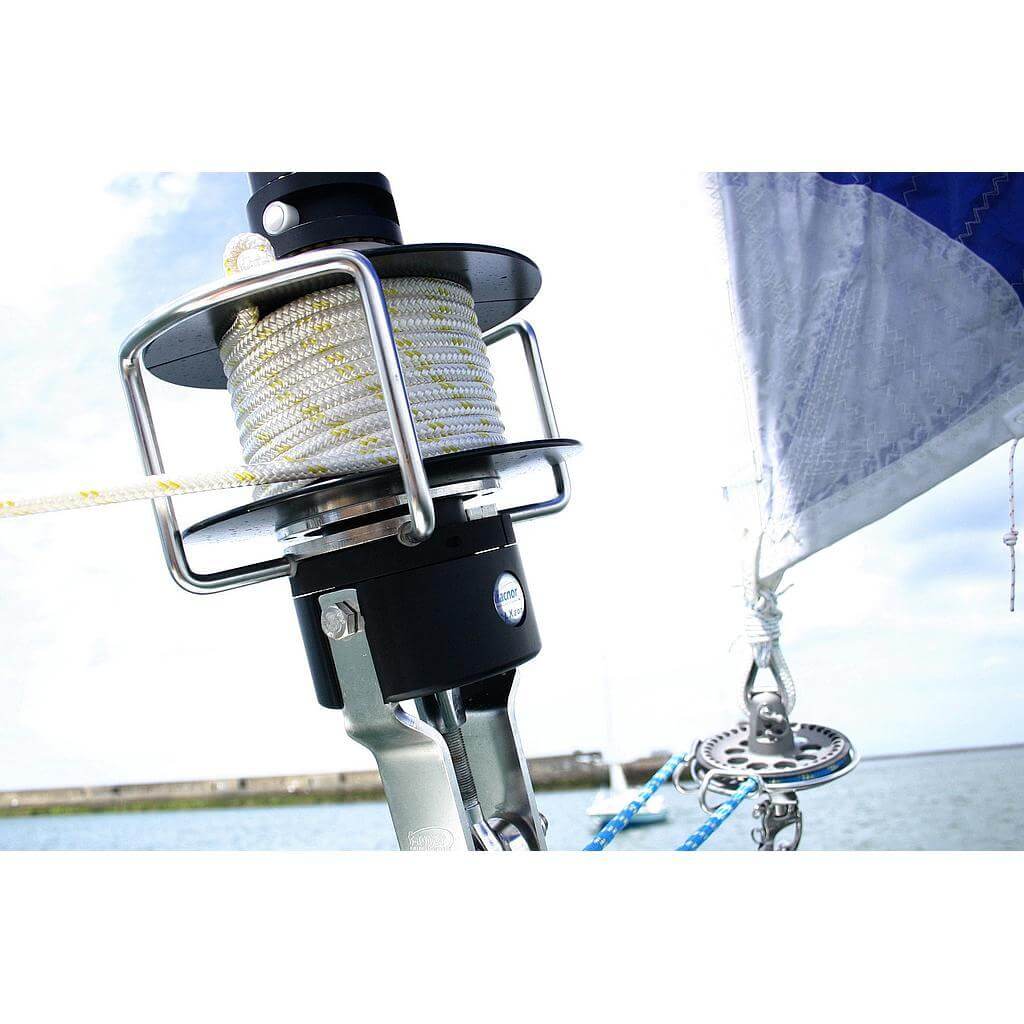

The LS/LX/RX ranges are Facnor’s well established, genoa reefing furlers with aluminium foil sections. Their extensive range has been tried and tested repeatedly by marine professionals and offshore sailors, with proven performance, durability and reliability.
The LS range is Facnor’s standard cruising solution, and has the following key features:
Easy installation
Strong sections & connections
Rugged, 30µ Anodized Aluminium protects parts against impacts and abrasion
360° furling line angle adjustment, for perfect alignment
Optional internal turnbuckle fitting
High load, waterproof halyard swivel
No maintenance bearings – fitted with a “bearing box”, tested over ocean races
The LS Standard kit includes: Drum, internal turnbuckle fitting, short link plates, foil sections + connections, halyard swivel, HR shackles. To use a 10mm wire diameter, it is necessary to have a removable eye or turnbuckle.
Spécifications
| Ø cordage (mm) | 8 |
| Taille bâteau recommandée - Max (ft) | 43 |
| Taille bâteau recommandée - Min (ft) | 40 |
| Ø du profil (mm) | 41 |
| Longueur standard de l’étai (mm) | 14500 |
| Ø tourelle (mm) | 225 |
| Ralingue (mm) | 5 |
| Ø cable max (mm) | 10 |
| Référence du profil | SX39 |
| Poids de profil (g/m) | 914 |
