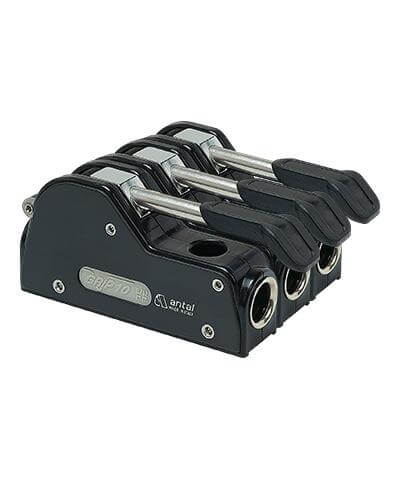

Specifications for Antal V Grip Clutch 12 Triple
| Width (mm) | 101 |
| Fixing hole Ø (mm) | 8 |
| Length (mm) | 132 |
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 10 |
| Height (mm) | 68 |
| SWL (kg) | 1300 |
| A (mm) | 30 |
| B (mm) | 87 |
| C (mm) | 15 |
| E (mm) | 34 |
| Weight (g) | 1450 |
| Type | Triple |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
The Antal V Grip Clutch 12 Triple is a valuable asset for controlling three 12mm diameter control lines simultaneously on high-performance sailboats.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Width (mm) | 101 |
| Fixing hole Ø (mm) | 8 |
| Length (mm) | 132 |
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 10 |
| Height (mm) | 68 |
| SWL (kg) | 1300 |
| A (mm) | 30 |
| B (mm) | 87 |
| C (mm) | 15 |
| E (mm) | 34 |
| Weight (g) | 1450 |
| Type | Triple |
