Specifications for Antal Removable Pad Eye - 10mm
| Style | Removable |
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Height (mm) | 35 |
| B (mm) | 20 |
| C (mm) | 28 |
| D (mm) | 60 |
| d (mm) | 10 |
| E (mm) | 56 |
| F (mm) | 80 |
| Weight (g) | 580 |
Antal Removable Pad Eye – 10mm
The Antal Removable Pad Eye – 10mm combines high strength with flexibility, offering a removable alternative to traditional padeyes. Constructed from 316 stainless steel, it provides a Safe Working Load (SWL) of 2,500 kg and is ideal for demanding applications where fittings are not always needed.

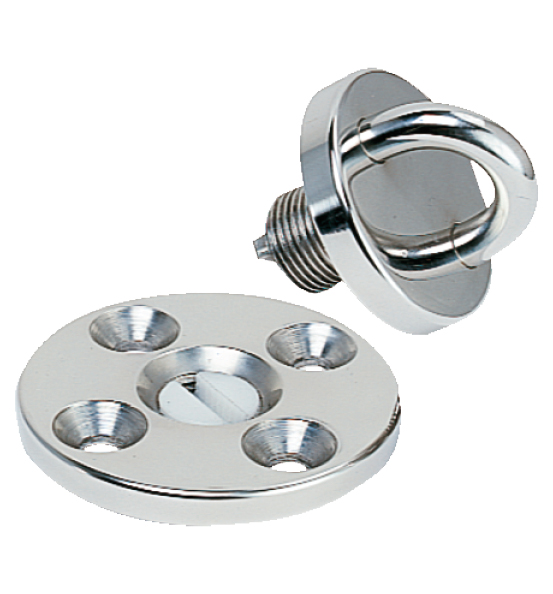

The system features a two-part design: a recessed deck socket and a detachable padeye that slots in securely or can be removed in seconds. When removed, the deck remains flush and snag-free.
Compared to the Standard Padeye, this removable option is especially useful on yachts where reducing deck clutter and maintaining flexibility in deck layouts is a priority.
Features:
- 10mm removable padeye, SWL 2,500 kg
- 316 stainless steel, durable and corrosion-resistant
- Flush-mounted deck socket with detachable padeye
- Same working load as fixed padeye
- Eliminates protrusions when removed
Applications:
- High-load block and rigging attachment points
- Racing yachts where fittings must be added/removed as required
- Safe, flush-fitting solution for busy deck areas
Specifications
| Style | Removable |
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Height (mm) | 35 |
| B (mm) | 20 |
| C (mm) | 28 |
| D (mm) | 60 |
| d (mm) | 10 |
| E (mm) | 56 |
| F (mm) | 80 |
| Weight (g) | 580 |
