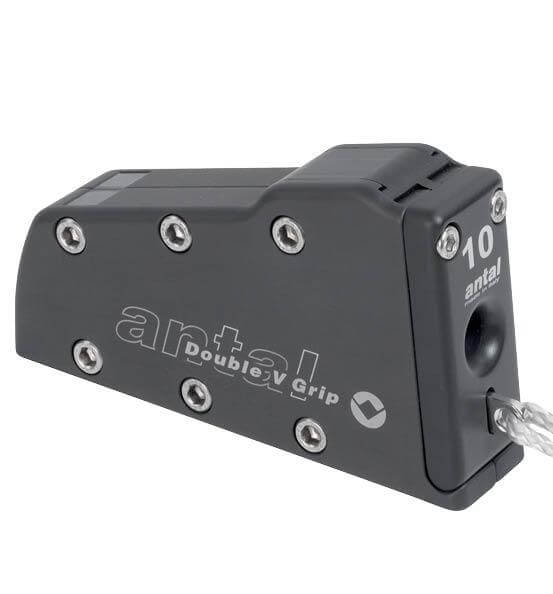

Antal DV Jammer For 10mm Lines Remote Control
The Antal DV Jammer For 10mm Lines Remote Control offers all the strength and reliability of Antal’s standard DV jammer but with the added advantage of remote operation. Instead of a manual slider, this version is controlled via a dedicated control line, making it the perfect solution for mast-mounted halyard jammers or installations where manual access is limited.
Like all DV jammers, it features Antal’s patented Double V-Grip system, which grips the rope evenly on all sides. This reduces cover wear, improves holding security, and ensures reliable performance with both modern high-tech ropes (such as Dyneema® blends) and traditional polyester lines.
Key Features
- Remote operation – Actuated via a control line in place of the manual slider, enabling secure release and locking from a distance.
- Double V-Grip mechanism – Two opposing V-shaped wedges create a four-sided grip that tightens automatically with load, ensuring secure line holding with less abrasion.
- Safe Working Load (SWL) – Rated to 2,000 kg, suitable for demanding halyard and sheet applications.
- Line compatibility – Optimised for 10 mm lines, balancing maximum grip with long-term rope protection.
- Durable construction – Marine-grade alloys and stainless steel ensure long service life in harsh marine environments.
- Smooth operation – Remote release always supported by a winch for safe, controlled handling under load.
Applications
Ideal for halyards, reefing lines, and high-load control systems where manual access is limited, the Antal DV Jammer for 10 mm lines in the remote-control version is particularly suited to mast-mounted installations on performance cruisers and racing yachts.
Alternatives
For this size, sailors can also choose:
- DV Jammer Standard version – deck-mounted, with manual slider control.
- DV Jammer Side-Mount version – designed for bulkhead or mast installation with manual slider control.
Specifications
| Width (mm) | 34 |
| Fixing hole Ø (mm) | 8 |
| Number of fixing holes | 4 |
| Length (mm) | 141 |
| Recommended line - Max Ø (mm) | 10 |
| Recommended line - Min Ø (mm) | 10 |
| Height (mm) | 90 |
| SWL (kg) | 2000 |
| Weight (g) | 680 |
