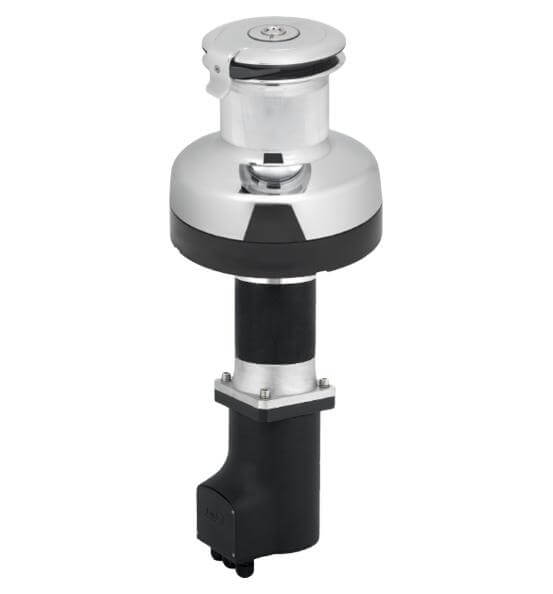

Antal 66 2-Speed Electric (Vertical) 24V Chromed Bronze Winch (2-Speed Manual)
Specifications for Antal 66 2-Speed Electric (Vertical) 24V Chromed Bronze Winch (2-Speed Manual)
| Recommended line - Max Ø (mm) | 18 |
| Recommended line - Min Ø (mm) | 10 |
| Skirt Details | Black Aluminium |
| Size | 66 |
| Style | Vertical |
| Power (W) | 1500 |
| Voltage (V) | 24 |
| Material | Chromed Bronze |
| Line recovery per rotation - 1st gear (mm) | 89 |
| Line recovery per rotation - 2nd gear (mm) | 24 |
| Base Ø (mm) | 248 |
| Drum Ø (mm) | 144 |
| Height (mm) | 256 |
| Motor Length (mm) | 311 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 3 |
| A (mm) | 457 |
| B (mm) | 311 |
| C (mm) | 115 |
| D (mm) | 248 |
| d (mm) | 144 |
| H (mm) | 256 |
| Speed (Motor) | 2-Speed |
| Gear ratio 1 (X : 1) | 5.2 |
| Gear ratio 2 (X : 1) | 18.9 |
| Power ratio 1 (X : 1) | 18 |
| Power ratio 2 (X : 1) | 65.6 |
| Pulling load - Max (kg) | 2600 |
| Line speed - 1st gear (m/min) | 13 |
| Line speed - 2nd gear (m/min) | 3.6 |
| Weight (g) | 48400 |
Two Reduced Speed Electric Vertical Winch
This motor-gearbox system is suitable for the largest Antal winches: mod. XT66 and XT70. A special hypocycloidal gearbox gives max efficiency. Powered with a 1500 Watt, 12 or 24 Volt motor. Two switches, one control box and one breaker complete the system.
CHROME (CH): the drum, ST disks and ST arm are entirely chrome-plated. All chromed parts are highly polished, thickly nickel-plated and finally finished in chrome.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
HORIZONTAL AND VERTICAL MOTORS - All the winches may be equipped with a horizontal motor and gearbox with a worm screw. The largest models may be supplied with a vertical motor which uses a high-efficiency hypocycloid speed reducer. Both solutions have been studied to ensure particularly compact dimensions and maximum silent operation.
MANUAL USE - Simply insert the handle to disconnect the gearbox-motor unit. Greater safety: accidental starting of the motor does not affect the winch, avoiding dangerous turning of the handle. Greater efficiency: the gearbox-motor unit does not turn in manual use, avoiding needless friction.
Specifications
| Recommended line - Max Ø (mm) | 18 |
| Recommended line - Min Ø (mm) | 10 |
| Skirt Details | Black Aluminium |
| Size | 66 |
| Style | Vertical |
| Power (W) | 1500 |
| Voltage (V) | 24 |
| Material | Chromed Bronze |
| Line recovery per rotation - 1st gear (mm) | 89 |
| Line recovery per rotation - 2nd gear (mm) | 24 |
| Base Ø (mm) | 248 |
| Drum Ø (mm) | 144 |
| Height (mm) | 256 |
| Motor Length (mm) | 311 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 3 |
| A (mm) | 457 |
| B (mm) | 311 |
| C (mm) | 115 |
| D (mm) | 248 |
| d (mm) | 144 |
| H (mm) | 256 |
| Speed (Motor) | 2-Speed |
| Gear ratio 1 (X : 1) | 5.2 |
| Gear ratio 2 (X : 1) | 18.9 |
| Power ratio 1 (X : 1) | 18 |
| Power ratio 2 (X : 1) | 65.6 |
| Pulling load - Max (kg) | 2600 |
| Line speed - 1st gear (m/min) | 13 |
| Line speed - 2nd gear (m/min) | 3.6 |
| Weight (g) | 48400 |
