Specifications for Tylaska T12 Martin Breaker - Standard Bail Snap Shackle
| Material | Stainless Steel |
| Material Grade | 17-4PH SS |
| SWL (kg) | 2720 |
| NBL (kg) | 5440 |
| A (mm) | 18 |
| B (mm) | 18.2 |
| C (mm) | 104 |
| Weight (g) | 167 |

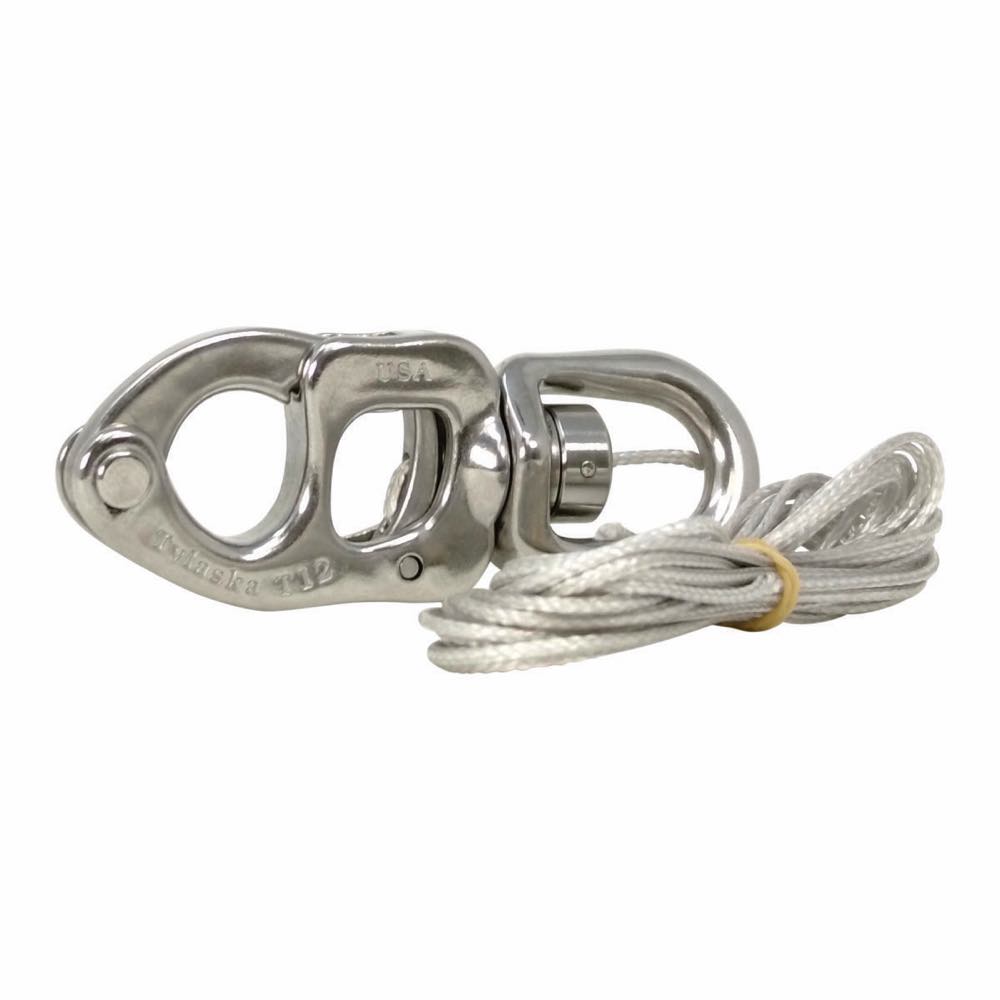

Tylaska T12 Martin Breaker – Standard Bail Snap Shackle
The Tylaska T12 Martin Breaker is a heavy-duty remote-release snap shackle, designed for yachts in the 30–45 ft range. Built from heat-treated 17-4 PH stainless steel and precision engineered to aerospace standards, it delivers the strength, reliability, and smooth release that Tylaska hardware is renowned for.
Equipped with a Dyneema® remote release cord, the T12 enables the shackle to be triggered safely under load from the cockpit or another protected position. This makes it an essential tool for spinnaker takedowns, where a quick, controlled release of the tack line can be executed without exposing crew to the risks of working forward on the bowsprit.
With an impressive breaking load of 12,000 lb (5,455 kg), the T12 is tailored for larger loads and higher-performance rigs, yet retains the smooth trigger action and compact design that make Martin Breakers easy to integrate into any system. The standard swivelling bail provides flexible attachment and helps minimise twist in sheets and halyards, making it a versatile choice for multiple rigging applications.
Key Features
- Breaking load: 12,000 lb (5,455 kg)
- Ideal for boats: ~30–45 ft
- Material: Aerospace-grade 17-4 PH stainless steel, heat-treated for superior strength
- Release system: Pre-installed Dyneema® cord for safe under-load remote release
- Bail type: Standard swivelling bail to reduce line twist and allow flexible fittings
- Performance: Enables fast, reliable spinnaker drops with improved crew safety
- Proof-tested: Each unit individually tested to full working load
Typical Applications
- Tack line release for asymmetric spinnakers on race yachts and offshore cruisers
- High-load gennaker or Code sail sheets requiring quick-release capability
- Essential hardware for offshore and short-handed sailing teams focused on safety and speed
The Tylaska T12 Martin Breaker is the professional sailor’s solution for larger yachts, combining strength, precision engineering, and remote-release safety in a single, race-proven unit.
Specifications
| Material | Stainless Steel |
| Material Grade | 17-4PH SS |
| SWL (kg) | 2720 |
| NBL (kg) | 5440 |
| A (mm) | 18 |
| B (mm) | 18.2 |
| C (mm) | 104 |
| Weight (g) | 167 |
