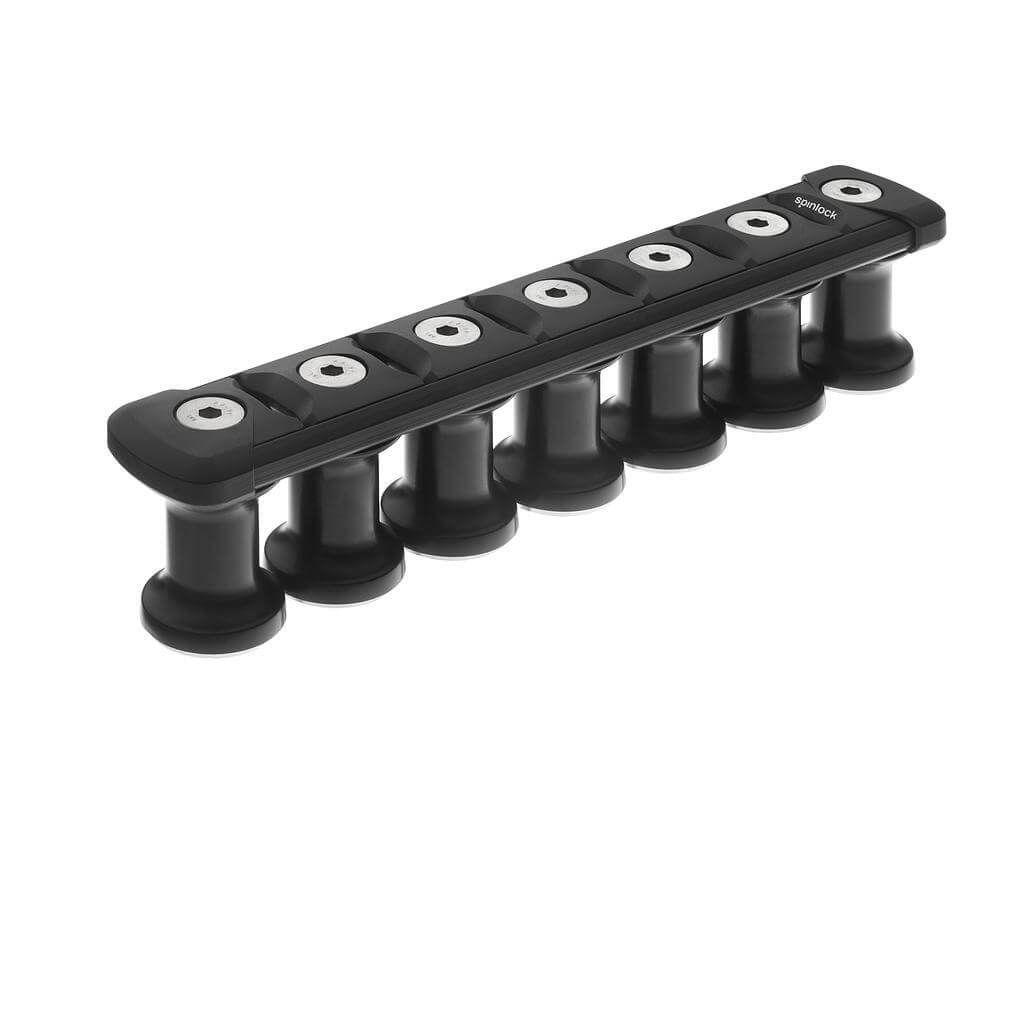

Aft Organiser for diverting lines from clutches and jammers
30mm sheaves for diverting large deflection angles and large diameter lines
All rotating sheaves with plain bearings
Fixed Sheaves can be inserted in the organiser to further increase deflection loads
Alloy top rails
Modular design and assembly - Sheaves can be moved to any spacing
Tulip shaped design reduces friction from vertical defection
Low profile design
Simple inserting and removal of endless lines
Central shaft designed to spread load through laminate
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Total width (mm) | 41 |
| Recommended line - Max Ø (mm) | 15 |
| Total height (mm) | 52 |
| Fixing hole spacing (mm) | 44 |
| Total length (mm) | 304 |
| Sheave Ø (mm) | 29 |
| Mounting fasteners | M10 CSK Head (supplied) |
| Sideplate material | Alloy |
| Sheave material | Alloy |
| SWL (kg) | 2500 |
| NBL (kg) | 5000 |
| Weight (g) | 1792 |
