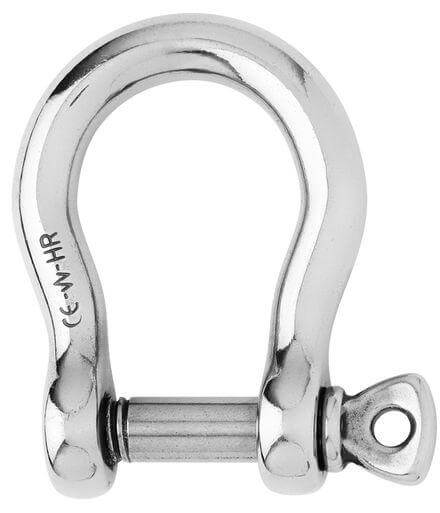

Specifications for Wichard HR bow shackle - Dia 8 mm
| Boat | |
|---|---|
| Load | |
| SWL (kg) | 1760 |
| NBL (kg) | 4100 |
| Dimensions | |
| A (mm) | 37 |
| B (mm) | 16 |
| C (mm) | 8 |
| D (mm) | 16 |
| E (mm) | 7 |
| M (mm) | 42 |
| Pin Ø (mm) | 8 |
| Material | |
| Material | Stainless Steel |
| Material Grade | AISI 630 (17-4 / HR) |
| Weight | |
| Weight (g) | 68 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
