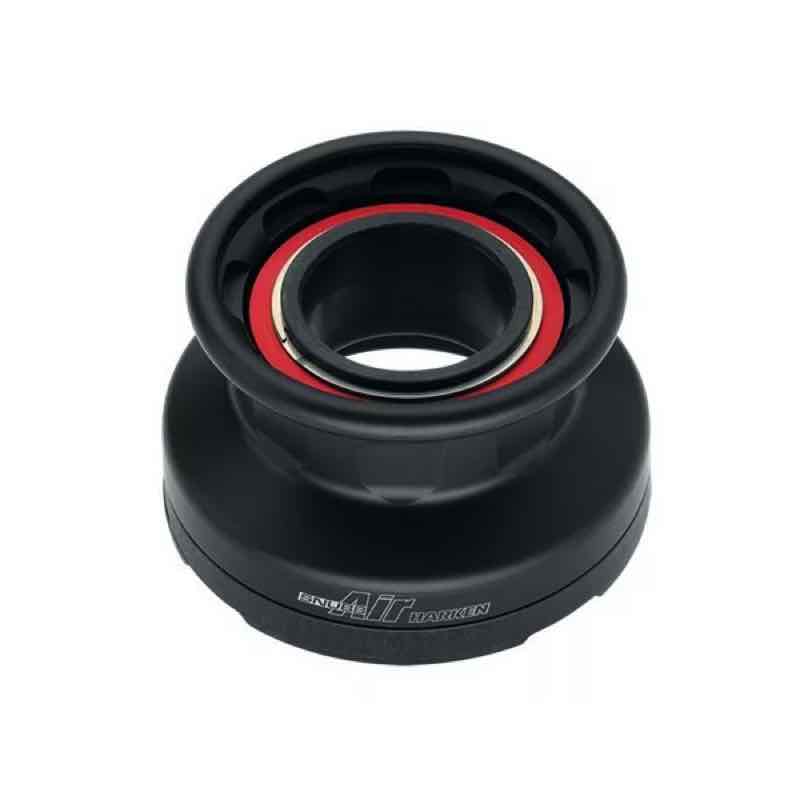

Harken SnubbAir – The Lightweight, High-Performance Alternative to a Winch
The Harken SnubbAir is an innovative hybrid between a snubbing winch and a ratchet block, offering exceptional line control for high-performance sailing. Designed as a lightweight alternative to traditional winches, the SnubbAir provides superior grip while maintaining a low-profile and ultra-lightweight design.
Key Features & Benefits:
- Exceptional Holding Power – Unlike ratchet blocks, the SnubbAir delivers significantly more grip. With just a few wraps of line, sailors can comfortably hold up to 454kg (1,000 lbs) of load while applying as little as 13.6kg (30 lbs) of holding force on the tail.
- Lightweight Construction – Weighing less than half the weight of a standard winch, the SnubbAir reduces overall deck weight, enhancing performance on racing yachts and performance cruisers.
- Low-Profile Design – The rounded corners and compact shape make it safer and more comfortable for crew movement, particularly on smaller or high-performance boats where deck space is at a premium.
- Versatile Line Handling – Ideal for spinnaker trimming, halyard control, and mainsail adjustments, the SnubbAir enables smooth, controlled easing of lines and instant sheet release during manoeuvres.
- Optional Winch Handle Adapter – The 1301 Winch Handle Adapter allows sailors to use a standard winch handle, providing additional mechanical advantage for fine-tuning sail trim.
- Easy Installation – Features integral mounting studs for quick fitting. The bolt pattern matches the Harken B8A winch, making it an easy retrofit upgrade.
- Minimal Maintenance – Open design allows for easy rinsing with fresh water to keep bearings and pawls clean and operating smoothly.
Technical Specifications:
- Drum Diameter: 79.2mm (3.12”)
- Base Diameter: 113.8mm (4.48”)
- Height: 68.8mm (2.707”) (71.7mm with adapter)
- Maximum Holding Load: 454kg (1,000 lbs)
- Mounting Fastener Circle: 90.7mm (3.57”)
Why Choose the SnubbAir?
The Harken SnubbAir is the perfect choice for sailors seeking greater holding power without the bulk of a traditional winch. Whether you're racing or cruising, this innovative system reduces fatigue, enhances trimming precision, and improves deck safety. Its lightweight, low-profile design makes it an ideal solution for small to mid-sized performance boats where agility and efficiency are key.
Upgrade your deck hardware with the Harken SnubbAir – lighter, stronger, and built for performance.
