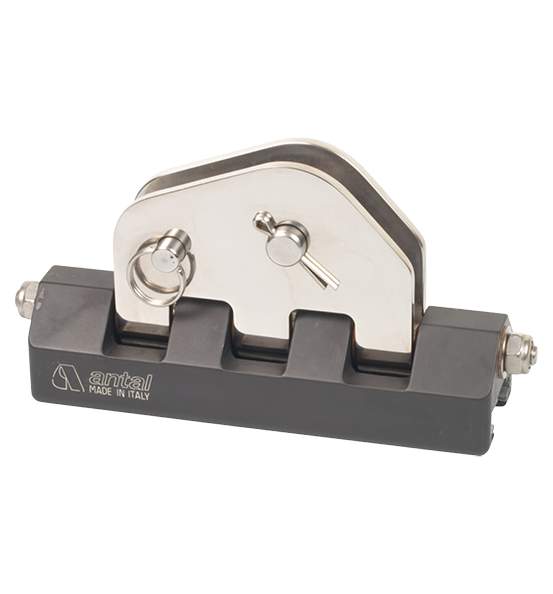

Antal Outhaul Slider 130 – T Track 32×6
The Antal Outhaul Slider 130 is a robust and straightforward outhaul solution for yachts from 42–48 ft. Designed to run on the 32×6 mm T Track (Antal ref: 602.212), it provides a strong and reliable connection point for the mainsail clew and outhaul line, ideal for applications where simplicity and durability are a priority.
The slider body is 130 mm long (hence the name) and built from hard anodised aluminium, reinforced with stainless steel side plates. These plates carry two heavy-duty pins: one positioned forward for attaching the mainsail clew, and a second aft pin for securing the outhaul line. This arrangement ensures a clean, direct outhaul lead while keeping loads well distributed across the slider.
With a Safe Working Load (SWL) of 3000 kg, the outhaul slider is engineered to withstand the high loads typical of medium-to-large yachts. Running on a plain-bearing system, it delivers reliable performance with minimal maintenance and without the complexity of ball-bearing cars.
The system is completed with end stops (Antal ref: 691.241), ensuring correct travel limits and secure integration into the outhaul system.
Key Features:
-
Designed for yachts from 42–48 ft
-
Runs on 32×6 mm T Track (ref: 602.212) with end stops ref: 691.241
-
SWL 3000 kg for high-load applications
-
130 mm long slider body for strength and stability
-
Two stainless steel pins: forward pin for the clew, aft pin for the outhaul termination
-
Hard anodised aluminium construction with stainless steel side plates
-
Plain-bearing design for simplicity and reliability
The Antal Outhaul Slider 130 – T Track 32×6 is the ideal choice for sailors who value strength and straightforward operation in their outhaul system, offering a dependable setup without unnecessary complexity.
