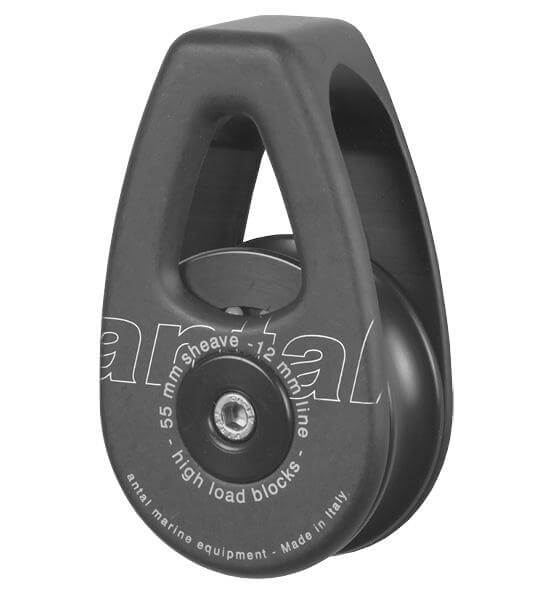

Antal High Load Blocks. These small and light blocks are the best solution for very high loads when sliding is not important. The very small sheave is fitted with a Composite Fibre bushing. The one piece frame is made for line connection.
The 3 blocks (D=30, 40 and 55 mm) give an 8 to 1 system. This system is specially designed for the backstay or the boom-vang.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 12 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 2400 |
| Blocks | |
|---|---|
| Bearing type | Ball bearing |
| Sheave material | Aluminium |
| Sideplate material | Aluminium |
| Ratchet | No |
| Dimensions | |
|---|---|
| Sheave Ø (mm) | 55 |
| Furling |
|---|
| Compatibility |
|---|
| Weight | |
|---|---|
| Weight (g) | 180 |
