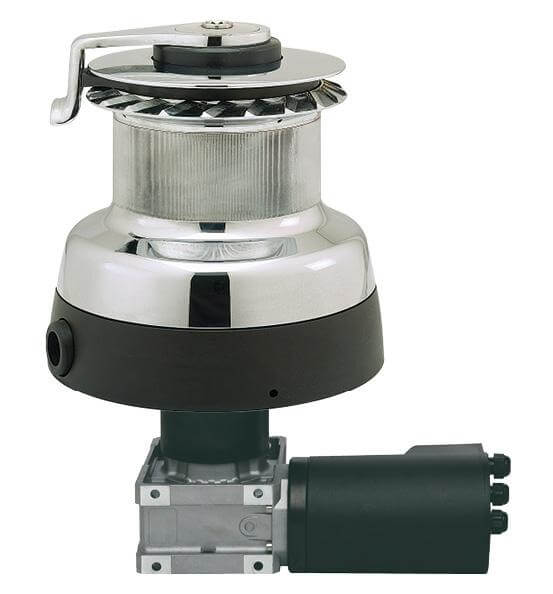

Antal 80 3-Speed Electric (Horizontal) 24V Chromed Bronze Maxi Winch (3-Speed Manual)
Specifications for Antal 80 3-Speed Electric (Horizontal) 24V Chromed Bronze Maxi Winch (3-Speed Manual)
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 22 |
| Recommended line - Min Ø (mm) | 12 |
| Electrics | |
| Voltage (V) | 24 |
| Power (W) | 2000 |
| Speed (Motor) | 3-Speed |
| Boat | |
| Style | Horizontal |
| Dimensions | |
| A (mm) | 203 |
| B (mm) | 334 |
| C (mm) | 115 |
| D (mm) | 339 |
| d (mm) | 210 |
| E (mm) | 73 |
| H (mm) | 338 |
| Base Ø (mm) | 339 |
| Drum Ø (mm) | 210 |
| Height (mm) | 338 |
| Motor Length (mm) | 334 |
| Winches | |
| Gear ratio 1 (X : 1) | 4.6 |
| Gear ratio 2 (X : 1) | 12.6 |
| Gear ratio 3 (X : 1) | 34.2 |
| Gears (Manual) | 3-Speed |
| Line recovery per rotation - 1st gear (mm) | 147 |
| Line recovery per rotation - 2nd gear (mm) | 53 |
| Line recovery per rotation - 3rd gear (mm) | 20 |
| Line speed - 1st gear (m/min) | 24 |
| Line speed - 2nd gear (m/min) | 9 |
| Line speed - 3rd gear (m/min) | 3 |
| Power ratio 1 (X : 1) | 11 |
| Power ratio 2 (X : 1) | 30 |
| Power ratio 3 (X : 1) | 81.4 |
| Pulling load - Max (kg) | 4000 |
| Skirt Details | Black Aluminium |
| Material | |
| Material | Chromed Bronze |
| Undefined | |
| Deck thickness Max (mm) | 73 |
| Size | 80 |
| Weight | |
| Weight (g) | 75000 |
| Warranty (yrs) | 3 |
Three Reduced Speed Maxi Winch
Maxi winches for boats more than 20 m long. These models are available only with a chromed drum (CH).
All the gears are fitted with roller bearings and the drum works on a very wide diameter roller-ball bearings. The push-button on the base starts the first gear (the fastest); second and third gear are automatically selected simply by reversing the rotation of the handle.
CHROME (CH): the drum, ST disks and ST arm are entirely chrome-plated. All chromed parts are highly polished, thickly nickel-plated and finally finished in chrome.
HORIZONTAL AND VERTICAL MOTORS - All the winches may be equipped with a horizontal motor and gearbox with a worm screw. The largest models may be supplied with a vertical motor which uses a high-efficiency hypocycloid speed reducer. Both solutions have been studied to ensure particularly compact dimensions and maximum silent operation.
MANUAL USE - Simply insert the handle to disconnect the gearbox-motor unit. Greater safety: accidental starting of the motor does not affect the winch, avoiding dangerous turning of the handle. Greater efficiency: the gearbox-motor unit does not turn in manual use, avoiding needless friction.
Specifications
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 22 |
| Recommended line - Min Ø (mm) | 12 |
| Electrics | |
|---|---|
| Voltage (V) | 24 |
| Power (W) | 2000 |
| Speed (Motor) | 3-Speed |
| Boat | |
|---|---|
| Style | Horizontal |
| Dimensions | |
|---|---|
| A (mm) | 203 |
| B (mm) | 334 |
| C (mm) | 115 |
| D (mm) | 339 |
| d (mm) | 210 |
| E (mm) | 73 |
| H (mm) | 338 |
| Base Ø (mm) | 339 |
| Drum Ø (mm) | 210 |
| Height (mm) | 338 |
| Motor Length (mm) | 334 |
| Winches | |
|---|---|
| Gear ratio 1 (X : 1) | 4.6 |
| Gear ratio 2 (X : 1) | 12.6 |
| Gear ratio 3 (X : 1) | 34.2 |
| Gears (Manual) | 3-Speed |
| Line recovery per rotation - 1st gear (mm) | 147 |
| Line recovery per rotation - 2nd gear (mm) | 53 |
| Line recovery per rotation - 3rd gear (mm) | 20 |
| Line speed - 1st gear (m/min) | 24 |
| Line speed - 2nd gear (m/min) | 9 |
| Line speed - 3rd gear (m/min) | 3 |
| Power ratio 1 (X : 1) | 11 |
| Power ratio 2 (X : 1) | 30 |
| Power ratio 3 (X : 1) | 81.4 |
| Pulling load - Max (kg) | 4000 |
| Skirt Details | Black Aluminium |
| Material | |
|---|---|
| Material | Chromed Bronze |
| Undefined | |
|---|---|
| Deck thickness Max (mm) | 73 |
| Size | 80 |
| Weight | |
|---|---|
| Weight (g) | 75000 |
| Warranty (yrs) | 3 |
