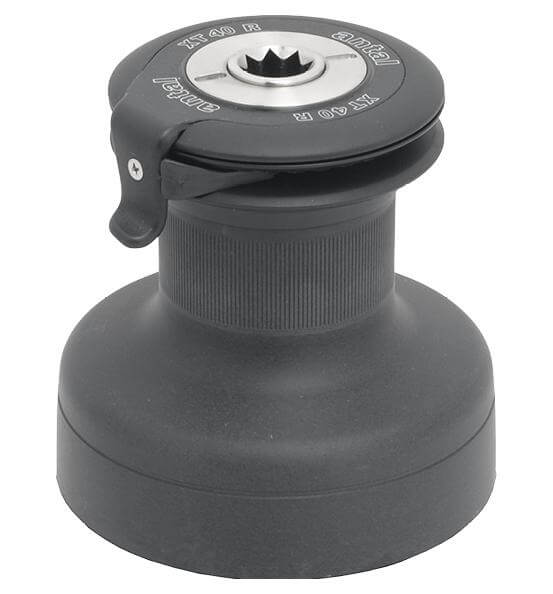

Specifications for Antal 40 2-Speed Self-Tailing Aluminium Race Winch
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 12 |
| Recommended line - Min Ø (mm) | 6 |
| Boat | |
| Style | Self-Tailing |
| Dimensions | |
| Base Ø (mm) | 153 |
| Drum Ø (mm) | 80 |
| Height (mm) | 157 |
| Winches | |
| Gear ratio 1 (X : 1) | 2 |
| Gear ratio 2 (X : 1) | 6.4 |
| Gears (Manual) | 2-Speed |
| Line recovery per rotation - 1st gear (mm) | 125 |
| Line recovery per rotation - 2nd gear (mm) | 40 |
| Power ratio 1 (X : 1) | 12.8 |
| Power ratio 2 (X : 1) | 40 |
| Material | |
| Material | Aluminium |
| Undefined | |
| Size | 40 |
| Weight | |
| Weight (g) | 3600 |
| Warranty (yrs) | 3 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Antal Winch Selection Guide.pdf
|
|
|
|
Antal_XT40 R_Exploded view.pdf
Exploded View of Antal Winch XT40_R
|
|
|
|
Antal_Installation_and_Maintenance_Manual_XT40_635809481349148976.pdf
|
|
|
|
Antal_Winches_Catalogue.pdf
|
|
|
|
WP - Winch selection guide.pdf
|
