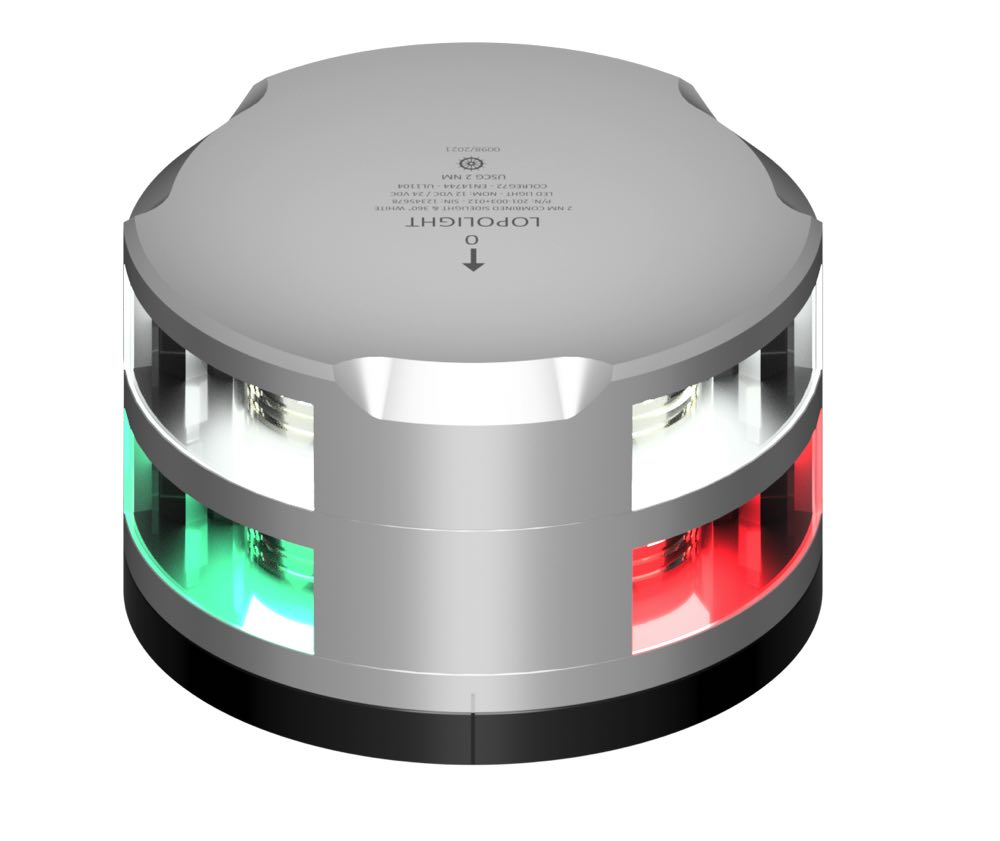

Lopolight 2NM Combined Sidelight + 2NM 360° White – 6m Cable (Silver Anodised)
[For vessels under 20m – LED navigation light]
The Lopolight 2NM Combined Sidelight + 360° White is a compact dual-function navigation light designed for vessels under 20 metres. It combines port and starboard sidelights with a 360° all-round white light in a single unit, reducing mast or deck clutter while ensuring full compliance with navigation light regulations.
This model is machined from silver anodised aluminium for exceptional corrosion resistance and durability. It features a horizontal-mount base suitable for masthead, arch, or superstructure installations. The 6-metre marine-grade cable allows for flexible routing and installation on taller rigs or larger vessels.
Rated IP68, the epoxy-sealed electronics are fully protected from saltwater, vibration, and UV damage, ensuring reliable performance in all conditions.
Key Features:
- Suitable for vessels under 20 metres

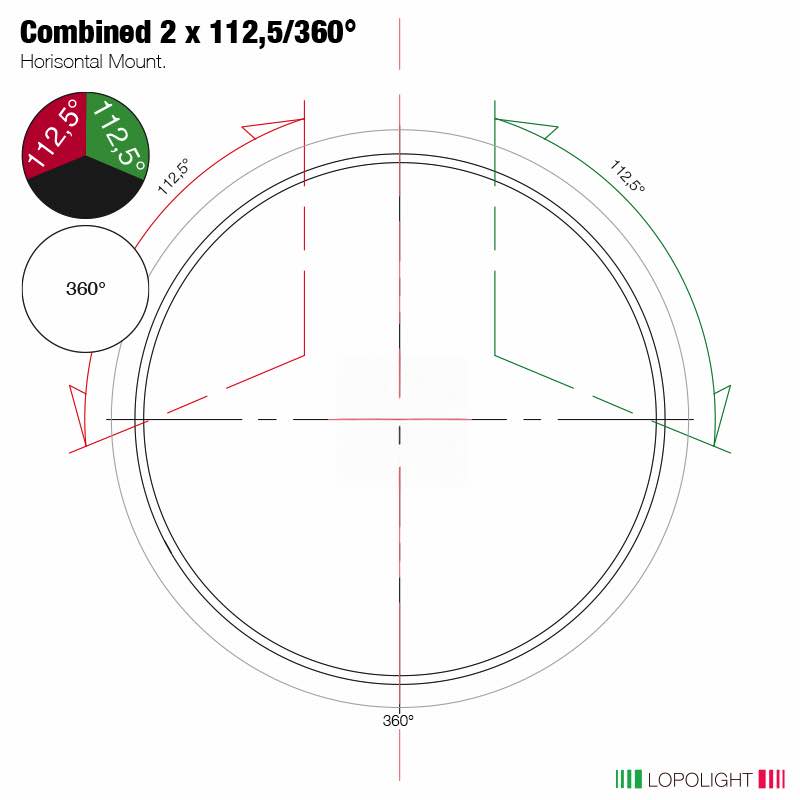

- Combined sidelights (112.5° port/red, 112.5° starboard/green) + 360° white all-round light
- Horizontal mount – ideal for masthead, arch, or deck installations
- Available in Silver anodised aluminium housing only
- IP68 sealed with epoxy-filled electronics for marine-grade durability
- Supplied with 6m marine-grade cable
- Low power draw – efficient LED output at 10–32 V
- Fully compliant with COLREG72, EN14744, and USCG standards
Specifications
| Connection | 6m cable |
| Dimensions (mm) | Ø92,5mm x 68mm |
| Current draw (mA @ 12VDC) | 163 |
| Current draw (mA @ 24VDC) | 90 |
| Boat size (m) | 12-20M |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Luminous Intensity (cd) | >5.4 |
| Visibility (NM) | 2 |
| Material | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Water resistance | IP68 |
| Weight (g) | 1070 |
