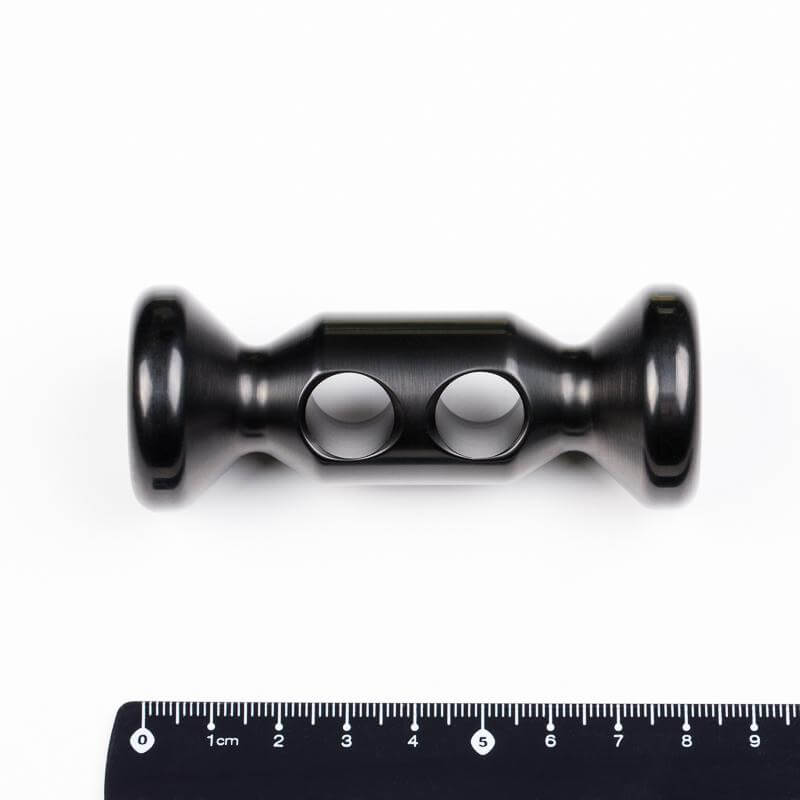

Specifications for LOOP Products Dogbone AL - 12mm
| Recommended line - Max Ø (mm) | 12 |
| Material | Aluminium |
| SWL (kg) | 3500 |
| NBL (kg) | 7000 |
| A (mm) | 34 |
| B (mm) | 84 |
| C (mm) | 13 |
| Weight (g) | 98 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
KOHLHOFF LOOP® Dogbones are one of the quickest and easiest ways to connect lines to other lines and/or to hardware. The advantage of a dogbone over a knot or a lashing is that they never bind and are quick and easy to release. This anodised aluminium dogbone has been specificaly designed to be spliced onto some 10-12mm single braid to create your own rope shackles / strops which can be used for a whole variety of purposes.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Recommended line - Max Ø (mm) | 12 |
| Material | Aluminium |
| SWL (kg) | 3500 |
| NBL (kg) | 7000 |
| A (mm) | 34 |
| B (mm) | 84 |
| C (mm) | 13 |
| Weight (g) | 98 |
