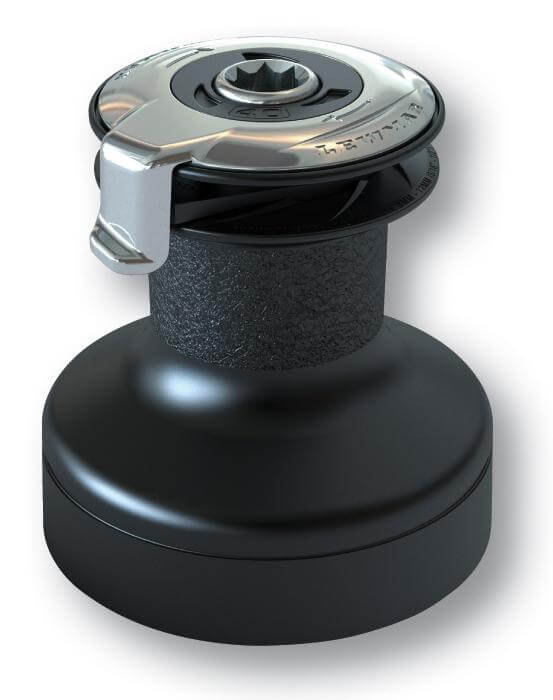

Specifications for Lewmar 70 2-Speed Self-Tailing Alloy Black EVOⓇ Winch
| Boat | |
|---|---|
| Style | Self-Tailing |
| Load | |
| SWL (kg) | 3000 |
| Dimensions | |
| B (mm) | 282 |
| D (mm) | 141 |
| H (mm) | 277 |
| L (mm) | 142 |
| Base Ø (mm) | 282 |
| Drum Ø (mm) | 141 |
| Height (mm) | 277 |
| Line entry height (mm) | 142 |
| Winches | |
| Gear ratio 1 (X : 1) | 5.8 |
| Gear ratio 2 (X : 1) | 18.8 |
| Gears (Manual) | 2-Speed |
| Line recovery per rotation - 1st gear (mm) | 150 |
| Line recovery per rotation - 2nd gear (mm) | 46 |
| Power ratio 1 (X : 1) | 20.9 |
| Power ratio 2 (X : 1) | 67.6 |
| Material | |
| Material | Aluminium |
| Undefined | |
| Size | 70 |
| Weight | |
| Weight (g) | 20500 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
