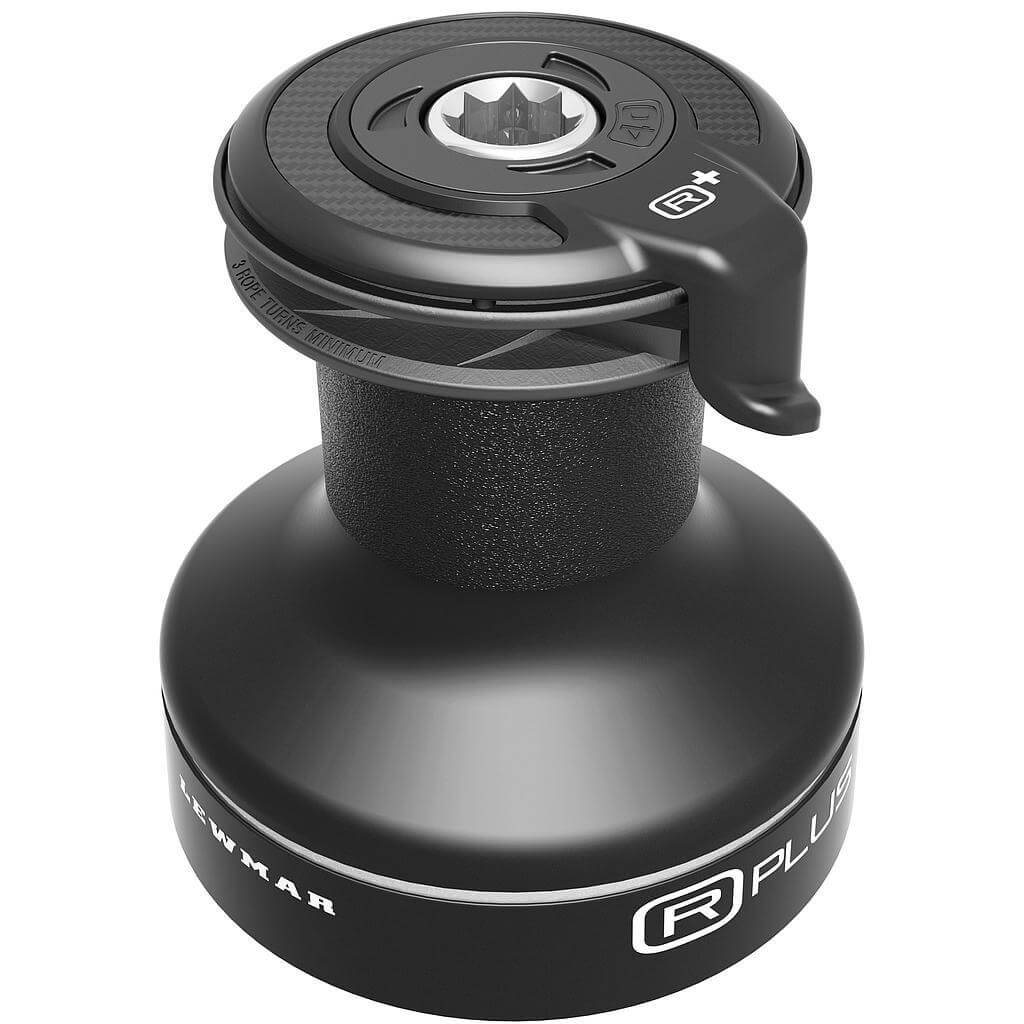

Specifications for Lewmar 50 2-Speed Self-Tailing Black Ionised EVOⓇ Race+ Winch
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 8 |
| Boat | |
| Style | Self-Tailing |
| Dimensions | |
| B (mm) | 181 |
| D (mm) | 93 |
| H (mm) | 197 |
| L (mm) | 90 |
| Base Ø (mm) | 181 |
| Drum Ø (mm) | 93 |
| Height (mm) | 197 |
| Line entry height (mm) | 90 |
| Winches | |
| Gear ratio 1 (X : 1) | 2.6 |
| Gear ratio 2 (X : 1) | 9 |
| Gears (Manual) | 2-Speed |
| Line recovery per rotation - 1st gear (mm) | 238 |
| Line recovery per rotation - 2nd gear (mm) | 69 |
| Power ratio 1 (X : 1) | 13.9 |
| Power ratio 2 (X : 1) | 48.6 |
| Material | |
| Material | Aluminium |
| Undefined | |
| Size | 50 |
| Weight | |
| Weight (g) | 6300 |
| Warranty (yrs) | 7 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
