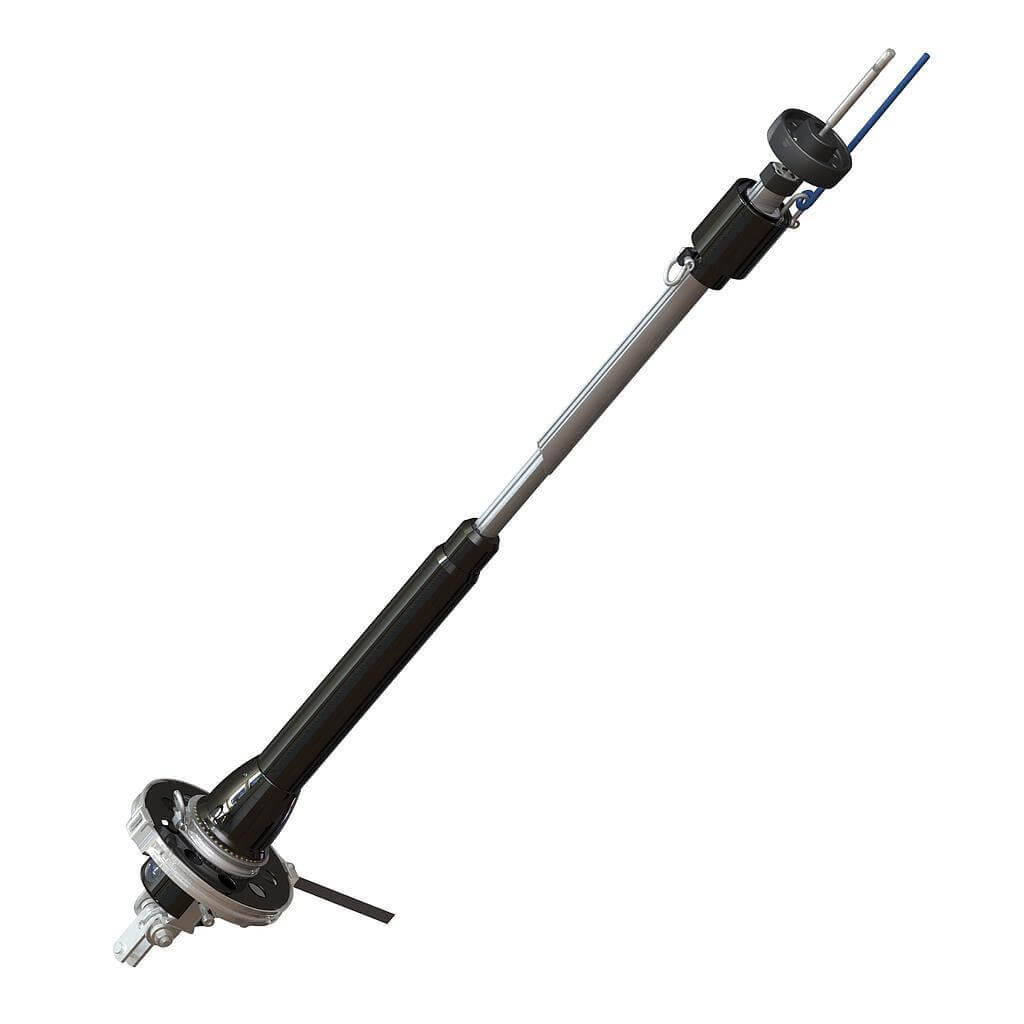

The Facnor FlatDeck furler is an innovative furling system that uses webbing as the furling line, instead of a traditional furling rope. The webbing is guided onto the drum and stacks neatly on top of itself, which provides three significant benefits:
It removes the possibility of line over-rides - a common problem on traditional drums.
It allows a significantly lower profile drum which in turn, increases available luff length for the genoa and finally,
With the sail fully unfurled, the diameter of the webbing is at its maximum on the drum which increases the power for the start of the furl over a traditional furler using rope. The drum webbing is connected to a rope with a swivel that prevents the webbing from twisting and allows the rope to be put on a winch, in the normal way.
The Flatedeck Standard kit includes: Drum, internal turnbuckle fitting, short link plates, foil sections + connections, halyard swivel, webbing/ rope kit, 3 standard and 1 articulated fairleads.
Specifications
| Rope Ø (mm) | 8 |
| Recommended Boat size - Max (ft) | 26 |
| Recommended Boat size - Min (ft) | 20 |
| Extrusion Ø (mm) | 28 |
| Headstay length Std. (mm) | 8400 |
| Drum Ø (mm) | 182 |
| Luff rope Ø (mm) | 5 |
| Wire Ø Max (mm) | 5 |
| Furling line length (m) | rope: 9 / webbing:10.5 |
| Extrusion reference | SX25 |
| Extrusion weight (g/m) | 577 |
| Luff groove (Single/Double) | D |
