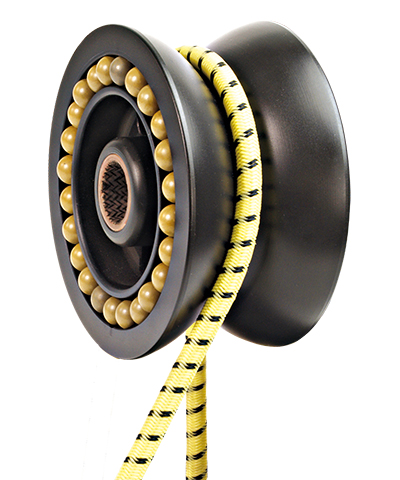

Antal Tulip Sheave 90 mm, Aluminium, 5 t
The same compact, wide-angle tulip geometry in a 5 t SWL version. The 90 mm aluminium wheel features self-captive Torlon® side balls to handle side loads and a composite axial/radial bearing for smooth, low-friction running—perfect for tidy organiser banks and cross-deck leads.
Why it’s a smart upgrade
- Handles acute lead angles while keeping the deck plan clean
- Low friction with Torlon® side balls and composite axial/radial bearing
- Hard-anodised, Teflon-coated aluminium resists wear and corrosion
Key specifications
- Sheave Ø: 90 mm
- Max rope Ø: 14 mm
- Safe Working Load (SWL): 5,000 kg
- Thickness (T): 38 mm
- Hub Ø (D2): 30 mm
- Side bearing: Torlon® balls (self-captive)
- Axial/radial bearing: Composite fibre
- Sheave material: Aluminium
Typical applications
- Tulip organisers, cross-deck and pit leads
- Compact turning points where a revolving block won’t fit
Fit & compatibility notes
- Confirm your installation’s sheave Ø (90 mm), hub Ø (30 mm) and thickness (38 mm) before ordering
- Designed for rope up to 14 mm; not suitable for wire or rod
- Need more headroom? See Antal Tulip Sheave 90 mm, Aluminium, 5.8 t.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Width (mm) | 50 |
| Recommended line - Max Ø (mm) | 14 |
| Inside Ø (mm) | 20 |
| Material | Aluminium |
| Sheave Ø (mm) | 90 |
| SWL (kg) | 5000 |
| Weight (g) | 450 |
