Specifications for Antal Removable Pad Eye - 12mm
| Fixing hole Ø (mm) | 10 |
| Style | Removable |
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Height (mm) | 38 |
| SWL (kg) | 3600 |
| B (mm) | 24 |
| C (mm) | 30 |
| D (mm) | 70 |
| d (mm) | 12 |
| E (mm) | 64 |
| F (mm) | 90 |
| Weight (g) | 720 |

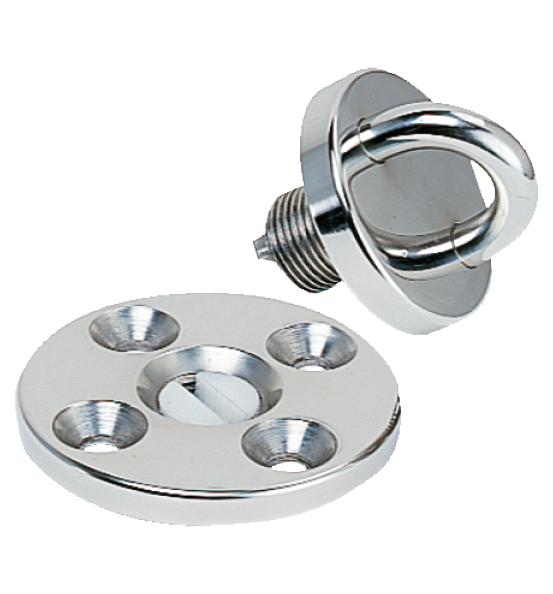

Antal Removable Pad Eye – 12mm
The Antal Removable Pad Eye – 12mm delivers strength, versatility, and safety in a removable design. Manufactured from 316 stainless steel, it provides a Safe Working Load (SWL) of 3,600 kg, making it suitable for heavy-duty applications on larger yachts.
Its two-part construction allows the padeye to be slotted into a recessed deck socket or removed instantly when not in use. With the padeye removed, only the flush socket remains, maintaining a clean and snag-free deck profile.
Compared to fixed Standard Padeyes, this removable version offers greater flexibility and is ideal for racing or high-performance yachts that demand adaptable deck layouts.
Features:
- 12mm removable padeye, SWL 3,600 kg
- Marine-grade 316 stainless steel
- Flush deck socket with removable padeye insert
- Same SWL as fixed version
- Maintains sleek deck profile when not installed
Applications:
- Heavy-duty block and lashing points
- Adaptable deck layouts for performance yachts
- Installations in areas where temporary fittings are preferred
Specifications
| Fixing hole Ø (mm) | 10 |
| Style | Removable |
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Height (mm) | 38 |
| SWL (kg) | 3600 |
| B (mm) | 24 |
| C (mm) | 30 |
| D (mm) | 70 |
| d (mm) | 12 |
| E (mm) | 64 |
| F (mm) | 90 |
| Weight (g) | 720 |
