Specifications for Antal Roller Cleat 230
| Colour* | Black or Silver |
| LS1 | 200 |
| LS2 | 44 |
| Total width (mm) | 46 |
| Total height (mm) | 46 |
| Recommended Boat size - Max (ft) | 36 |
| Total length (mm) | 232 |
| Material | Aluminium |
| SWL (kg) | 2000 |
| D (mm) | 21 |
| Weight (g) | 440 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

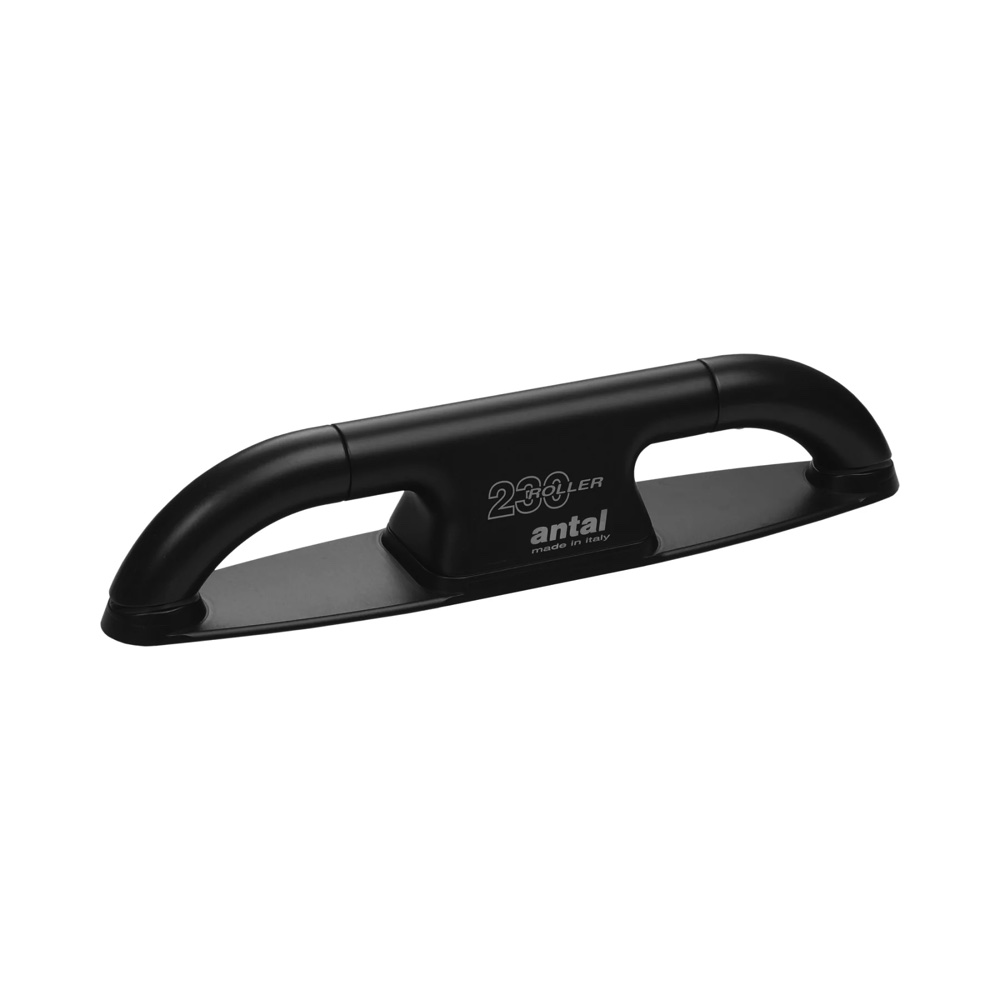

Antal Roller Cleat 230
The Antal Roller Cleat 230 is a premium folding mooring cleat designed for yachts where both performance and clean deck aesthetics matter. With rotating horns that can be opened or closed with a simple twist—even when the line is under load—it combines convenience with innovation.
When closed, the cleat sits low on the deck, minimising the risk of snagging sheets or other running rigging. Its smooth, rounded shapes prevent chafe on mooring lines, while the anodised aluminium construction ensures strength, durability, and long-term corrosion resistance.
Specifications:
- Length: 230 mm
- Safe Working Load (SWL): 2,000 kg
- Finishes: Silver anodised or Black anodised aluminium
Applications:
- Ideal for small-to-mid-sized yachts
- Perfect where a sleek, clutter-free deck profile is required
- A premium alternative to traditional horn cleats
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Colour* | Black or Silver |
| LS1 | 200 |
| LS2 | 44 |
| Total width (mm) | 46 |
| Total height (mm) | 46 |
| Recommended Boat size - Max (ft) | 36 |
| Total length (mm) | 232 |
| Material | Aluminium |
| SWL (kg) | 2000 |
| D (mm) | 21 |
| Weight (g) | 440 |
