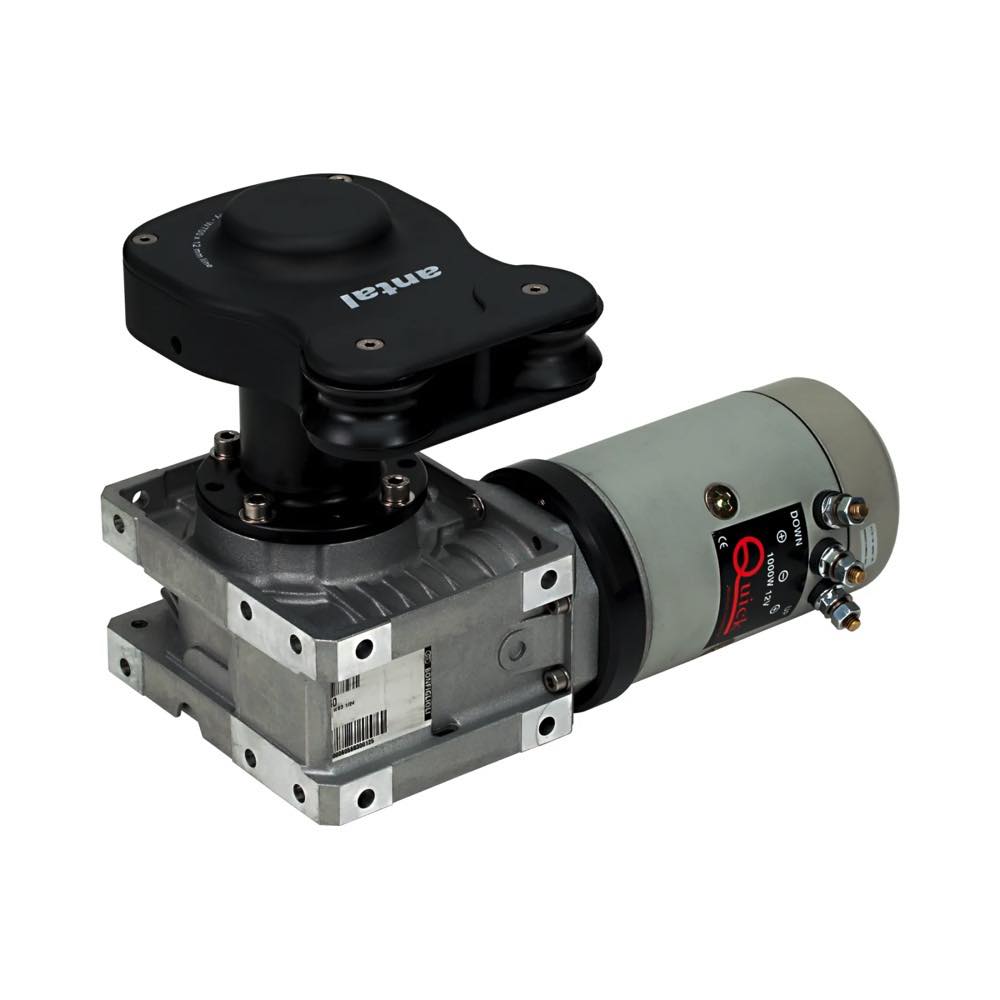

Antal LD1500 Powered Line Driver – Heavy-Duty Traveller Control for Large Yachts
The Antal LD1500 Powered Line Driver is a high-performance, motorized sail control system designed for large yachts and high-load applications. Equipped with a 1500W motor, the LD1500 is available in 12V, 24V, and 48V versions, ensuring compatibility with various onboard power systems. This system enables smooth mainsail or genoa car adjustments, significantly reducing manual effort while enhancing control, efficiency, and precision. The self-tailing sheave provides a secure grip on the line, operating in both directions for smooth and reliable performance under extreme loads.
Designed for below-deck installation, the LD1500 Line Driver keeps the deck clean and clutter-free, making it an excellent choice for superyachts, performance cruisers, and racing yachts seeking advanced sail automation.
Additionally, for applications requiring even higher loads and hydraulic integration, the LD1500 is also available in a separate hydraulic version to meet the demands of larger yachts and custom installations.
Key Features & Specifications:
- Model: LD1500
- Power Supply Options: Available in 12V, 24V, and 48V versions
- Motor Power: 1500W, delivering superior performance under extreme loads
- Line Diameter: 12–14 mm, compatible with various traveller configurations
- Main Car Size Compatibility: 47 × 430 mm, ensuring seamless integration
- Mounting Screws: 4 × Ø8 mm for secure installation
- Working Load Capacity: 1600 kg
- Line Speed: 0.12 m/sec (varies with load conditions)
- Weight: 22 kg
System Requirements – Additional Components Needed (Not Included in Price)
To ensure a fully operational system, the following additional components are required and sold separately:
✔ Circuit Breaker – Protects against electrical overload and ensures system safety
✔ Control Box – Centralized unit managing power and functionality
✔ Switches – Allows for easy traveller movement control
✔ End Stop Control Unit – Prevents overloading and enhances safety
✔ Proximity Switches – Automatically stops the traveller at set track positions
Why Choose the Antal LD1500 Powered Line Driver?
✔ Heavy-Duty Performance – Designed for superyachts and large performance sailboats
✔ Automated Traveller Adjustments – Reduces manual effort for fast and precise sail control
✔ Below-Deck Installation – Maintains a clean and professional deck layout
✔ Handles Extreme Loads – Supports up to 1600 kg working load
✔ Self-Tailing Sheave for Secure Line Grip – Ensures smooth, reliable operation
✔ Versatile Power Options – Available in 12V, 24V, and 48V models
✔ Hydraulic Version Also Available – Ideal for custom installations requiring greater power and load handling
Ideal for:
- Mainsail Car Control – Enables precise traveller positioning for optimal sail trim
- Genoa Car Control – Allows smooth, controlled genoa adjustments
- Superyachts, Performance Cruisers & Racing Yachts – Enhances efficiency, control, and safety
The Antal LD1500 Powered Line Driver is the ultimate solution for large yachts, providing powerful, precision-controlled traveller movement at the push of a button. Upgrade your sailboat’s handling and efficiency with Antal’s cutting-edge technology.
