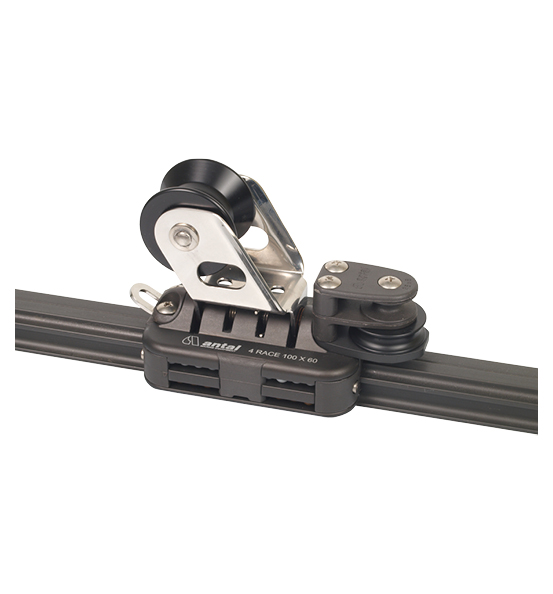

Antal 4Race 100 Genoa Car – 26×20, 3:1 Control
The Antal 4Race 100 Genoa Car – 3:1 Control provides maximum purchase in the size-100 range, delivering smooth, precise adjustment of genoa lead positions on the 26×20 mm 4Race track (Antal ref: 601.121). Built from hard black anodised aluminium with stainless steel side plates, the car runs on four rows of Torlon® and Delrin® ball bearings, ensuring effortless movement under load. With a Safe Working Load (SWL) of 820 kg, it is well suited to smaller performance yachts.
This model is equipped for a 3:1 control system. One end of the car carries a becket, while the opposite end is fitted with a becket and a 35 mm control sheave. This layout allows the control line to be reeved for a compact 3:1 purchase, significantly reducing trimming effort and giving fine control over lead adjustments. A 45 mm sheet sheave provides a smooth and reliable lead for the genoa sheet.
Key Features:
- Designed for yachts using the 26×20 mm 4Race track (ref: 601.121)
- SWL 820 kg for dependable load handling
- Four rows of Torlon® and Delrin® ball bearings for smooth travel
- 3:1 control system with becket + sheave configuration
- 45 mm sheet sheave for efficient genoa sheet handling
- Hard anodised aluminium body with stainless steel side plates
- Fully serviceable design for long-term durability
The Antal 4Race 100 Genoa Car – 26×20, 3:1 Control offers the highest level of mechanical advantage in the size-100 range, combining strength, precision, and ease of adjustment for sailors who demand fine sail control.
Spécifications
| Width (mm) | 62 |
| Length (mm) | 98 |
| Hauteur totale (mm) | 100 |
| Longueur totale (mm) | 125 |
| Ø réas (mm) | 45 |
| Hauteur d’entrée du cordage (mm) | 59 |
| Charge de travail (kg) | 820 |
| Poids (g) | 400 |
