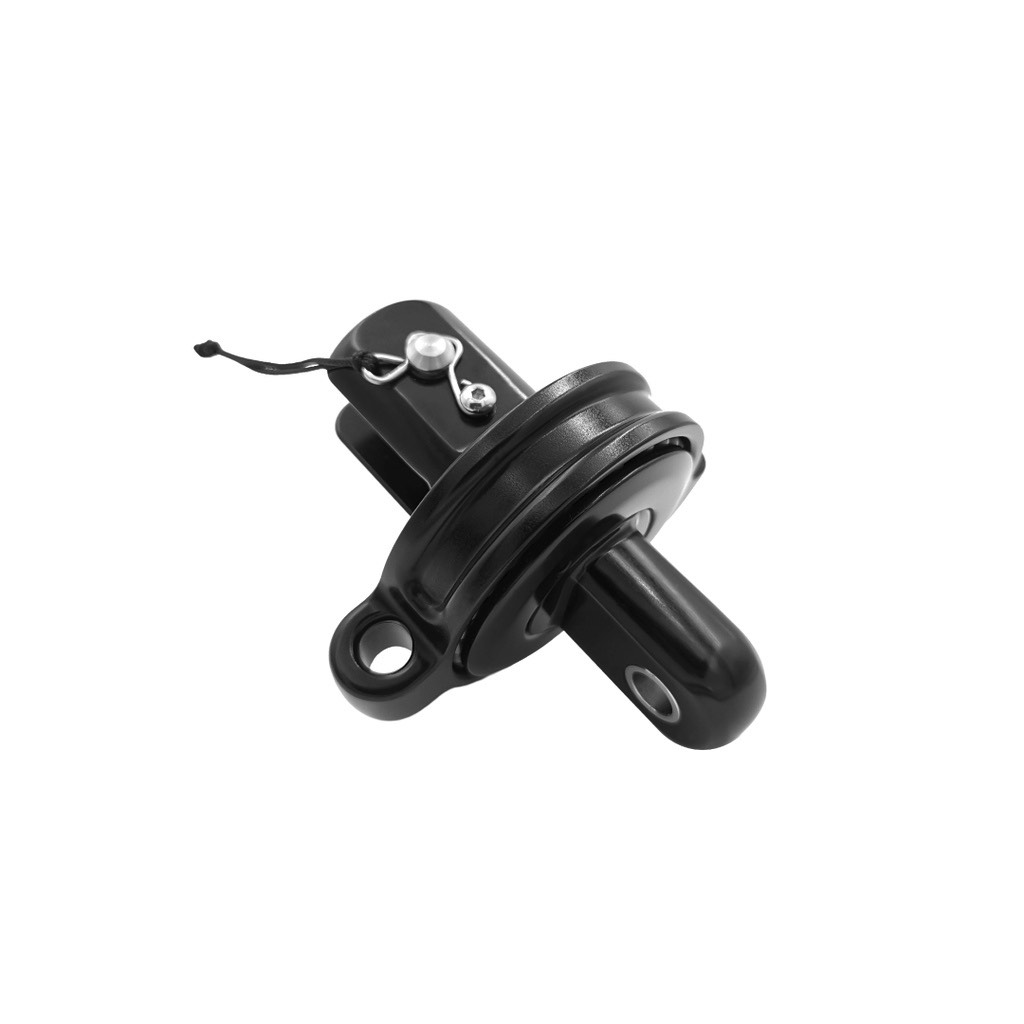

Morfrac powerfurl.[six] – Top-Down Integrator (6t SWL)
The Morfrac Top-Down Integrator for powerfurl.[six] enables precise and efficient furling of asymmetric spinnakers and other free-flying sails on large performance yachts. This robust adaptor connects directly to the furler drum, converting rotational input into torsional force transmitted through an anti-twist cable—allowing clean, controlled furling from the sail head downward.
Machined from hard-anodised aluminium for maximum strength and corrosion resistance, the integrator features an internal bearing race for smooth engagement and consistent furling performance under high loads. It is engineered for yachts using the 6t SWL furler, typically in the 55–60+ foot range.
Notably, this is the same component used with the powerfurl.[four], reflecting Morfrac’s modular design philosophy and allowing shared use of terminal fittings across systems—streamlining rigging and spare parts management.
Key Features:
- Suitable for 6t SWL furlers (shared with 4.5t model)
- Connects drum to torsion cable for top-down furling systems
- High-strength, hard-anodised aluminium body
- Bearing-driven sheave for smooth torsional transfer
- Fully compatible with powerfurl.[six] and [four] drums
- Sold individually – torsion cable and shackles not included
For high-load applications requiring reliable top-down furling, this integrator delivers Morfrac’s signature performance with maximum rigging versatility.
Specifications
| Jaw pin Ø (mm) | 12 |
| Jaw width (mm) | 22 |
| SWL (kg) | 6000 |
| Weight (g) | 701 |
