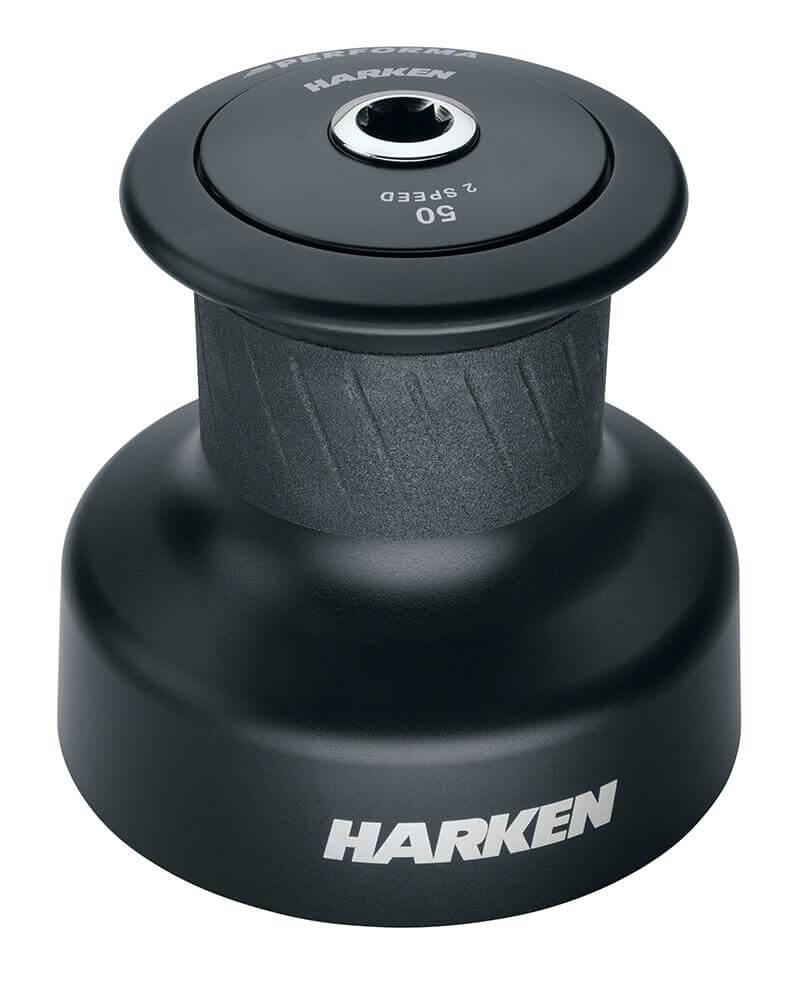

Specifications for Harken 50 2-Speed Plain-Top Performa™ Winch
| Empfohlener max. Leinendurchmesser (mm) | Nicht verfügbar |
| Empfohlener min. Leinendurchmesser (mm) | Nicht verfügbar |
| Größe | 50 |
| Style | Plain-Top |
| Material | Aluminium |
| Basis Ø (mm) | 195 |
| Trommel Ø (mm) | 110 |
| Höhe (mm) | 190 |
| Leinen Einlaufhöhe (mm) | 97 |
| Gänge (manuell) | 2-Speed |
| SWL (kg) | 1450 |
| A (mm) | 110 |
| B (mm) | 195 |
| C (mm) | 190 |
| D (mm) | 97 |
| Getriebuntersetzung 1. Gang (X : 1) | 2,4 |
| Getriebuntersetzung 2. Gang (X : 1) | 10,9 |
| Kraftuntersetzung 1. Gang (X : 1) | 11,1 |
| Kraftuntersetzung 2. Gang (X : 1) | 50,4 |
| Gewicht (g) | 5900 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Harken Performa™ winches combine the high-efficiency of the Radial line with the sandblasted grip of Harken carbon-fibre racing winches for powerful hybrids. Optimized to handle the high-strength line used on sportboats and performance cruisers, Performa winches are a great solution for crew who don’t wish to invest in carbon winches or who need racing winches in smaller sizes. All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Use plain-top winches on sportboats where sails require frequent trimming.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spezifikationen
| Empfohlener max. Leinendurchmesser (mm) | Nicht verfügbar |
| Empfohlener min. Leinendurchmesser (mm) | Nicht verfügbar |
| Größe | 50 |
| Style | Plain-Top |
| Material | Aluminium |
| Basis Ø (mm) | 195 |
| Trommel Ø (mm) | 110 |
| Höhe (mm) | 190 |
| Leinen Einlaufhöhe (mm) | 97 |
| Gänge (manuell) | 2-Speed |
| SWL (kg) | 1450 |
| A (mm) | 110 |
| B (mm) | 195 |
| C (mm) | 190 |
| D (mm) | 97 |
| Getriebuntersetzung 1. Gang (X : 1) | 2,4 |
| Getriebuntersetzung 2. Gang (X : 1) | 10,9 |
| Kraftuntersetzung 1. Gang (X : 1) | 11,1 |
| Kraftuntersetzung 2. Gang (X : 1) | 50,4 |
| Gewicht (g) | 5900 |
