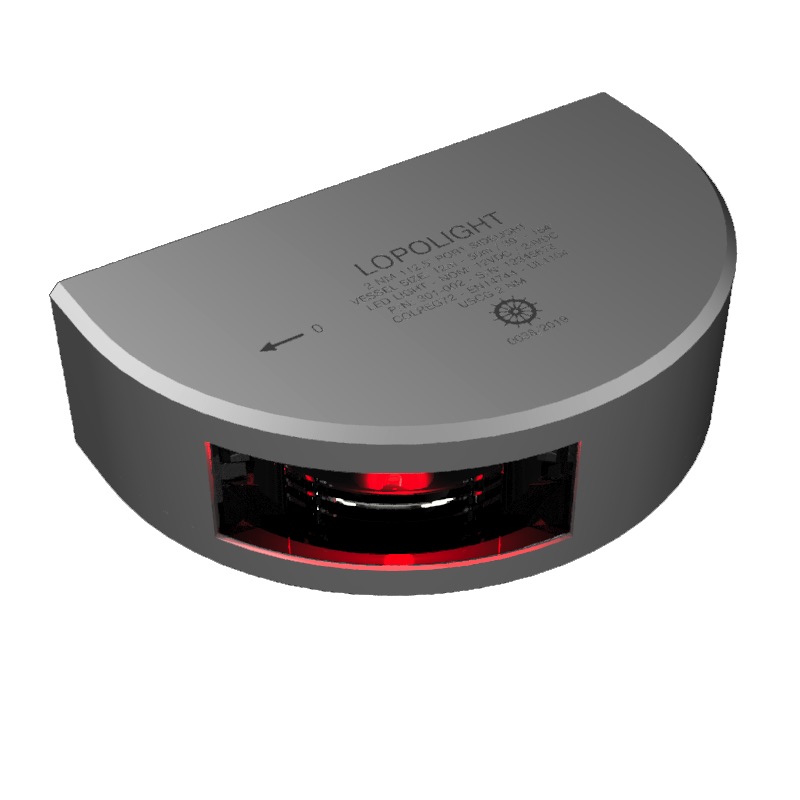

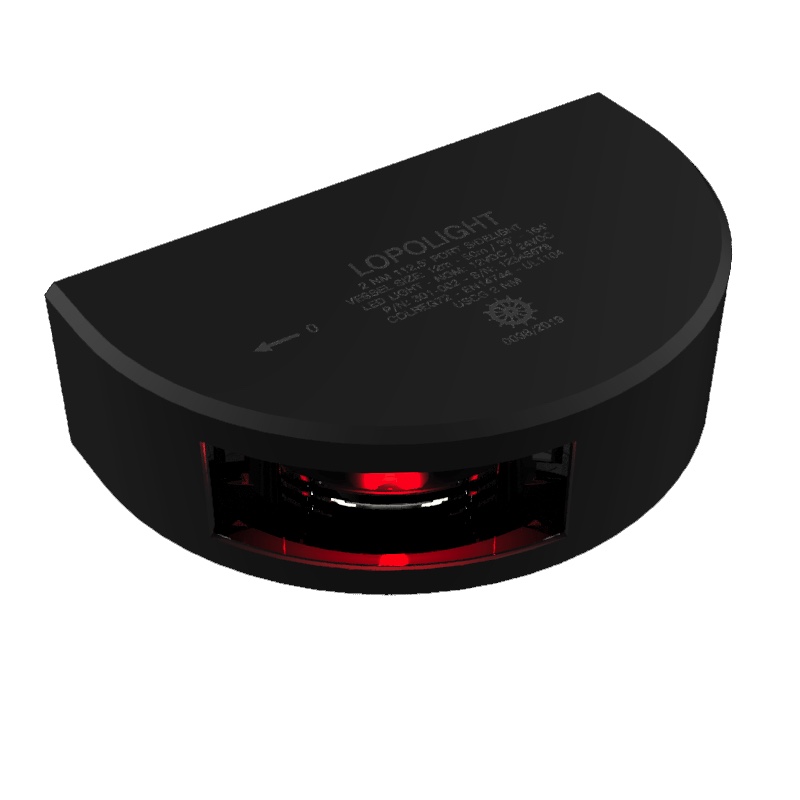

Lopolight 2NM 112.5° Port Sidelight – Vertical Mount, 2.5m Cable (Silver or Black Anodised)
[For vessels under 20m – LED navigation light]
The Lopolight 2NM Port Sidelight is a precision-engineered LED navigation light for vessels under 20 metres. Emitting a crisp 112.5° red beam visible to 2 nautical miles, it delivers reliable, compliant portside visibility for safe navigation.
Constructed from anodised aluminium, this model is available in Silver or Black finishes. Its compact vertical-mount design makes it ideal for installation on hull sides, pulpits, or confined deck areas. Rated IP68, the epoxy-sealed electronics ensure long-lasting resistance to saltwater, vibration, and UV exposure.
The 2.5-metre marine-grade cable provides straightforward installation for standard routing distances.
Key Features:
- Suitable for vessels under 20 metres
- 112.5° red beam, visible to 2NM
- Vertical mount – ideal for hull or pulpit installations
- Available in Silver or Black anodised aluminium housing
- IP68 sealed with epoxy-filled electronics for marine durability
- Supplied with 2.5m marine-grade cable
- Low power draw – ~2 W at 10–32 V
- Fully compliant with COLREG72, EN14744, and USCG standards
- Alternative version available with 6m cable connection
- Installation guide
Spécifications
Boat size (m) | 20-50M ou 12-20M ou Under 12M |
Couleur | Argent ou Noir |
Connection | 2.5m cable |
Dimensions (mm) | 92,5 x 28 x 49,7 |
Operating temperature | -25°C to 55°C |
Feed wire gauge Min | 0.5mm2 AWG22 |
Current draw (mA @ 12VDC) | 90 |
Current draw (mA @ 24VDC) | 50 |
Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
Luminous Intensity (cd) | >5.4 |
Power supply type | dc. |
Visibility (NM) | 2 |
Power (W) | 1,2 |
Tension de fonctionnement | 10-32 |
Matériau | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
Garantie (année) | 5 year limited warranty |
Résistant à l'eau | IP68 |
Poids (g) | 380 |
