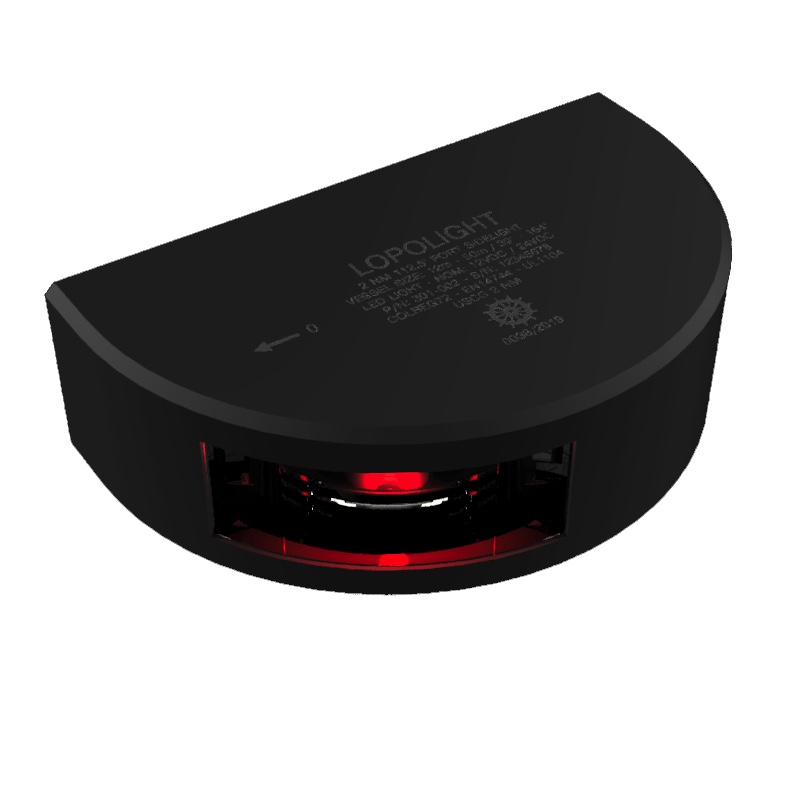

Lopolight 2NM 112.5° Port Sidelight – Vertical Mount, 2.5m Cable (Silver or Black Anodised)

[For vessels under 20m – LED navigation light]


The Lopolight 2NM Port Sidelight is a precision-engineered LED navigation light for vessels under 20 metres. Emitting a crisp 112.5° red beam visible to 2 nautical miles, it delivers reliable, compliant portside visibility for safe navigation.

Constructed from anodised aluminium, this model is available in Silver or Black finishes. Its compact vertical-mount design makes it ideal for installation on hull sides, pulpits, or confined deck areas. Rated IP68, the epoxy-sealed electronics ensure long-lasting resistance to saltwater, vibration, and UV exposure.

The 2.5-metre marine-grade cable provides straightforward installation for standard routing distances.

Key Features:

  • Suitable for vessels under 20 metres
  • 112.5° red beam, visible to 2NM
  • Vertical mount – ideal for hull or pulpit installations
  • Available in Silver or Black anodised aluminium housing
  • IP68 sealed with epoxy-filled electronics for marine durability
  • Supplied with 2.5m marine-grade cable
  • Low power draw – ~2 W at 10–32 V
  • Fully compliant with COLREG72, EN14744, and USCG standards
  • Alternative version available with 6m cable connection
  • Installation guide

Spécifications

Boat size (m) 20-50M ou 12-20M ou Under 12M
Couleur Argent ou Noir
Connection 2.5m cable
Dimensions (mm) 92,5 x 28 x 49,7
Operating temperature -25°C to 55°C
Feed wire gauge Min 0.5mm2 AWG22
Current draw (mA @ 12VDC) 90
Current draw (mA @ 24VDC) 50
Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
Luminous Intensity (cd) >5.4
Power supply type dc.
Visibility (NM) 2
Power (W) 1,2
Tension de fonctionnement 10-32
Matériau Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Garantie (année) 5 year limited warranty
Résistant à l'eau IP68
Poids (g) 380
